Passat (B3)

Installation instructions
Installation instructions

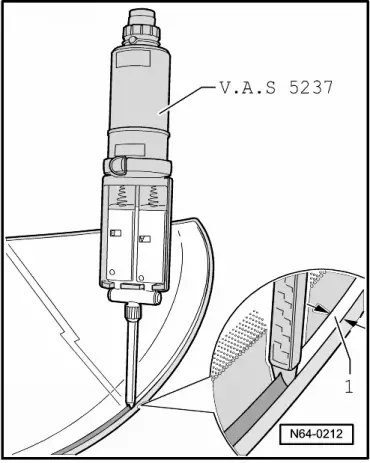

–  Apply adhesive material (continuous bead) to pre-coating-1-, applicator at right angle to window.
  WARNING
Window must be installed within 10 minutes, or adhesive properties of window adhesive will be impaired.
–  Insert window in opening using two suction lifters -V.A.G 1344- and align.
–  Press in window up to spacing lip -2-.
–  Secure window glass in position with adhesive tape during curing process.
t  Replace stickers (e.g. for airbag) which may be installed.
  N64-0212
