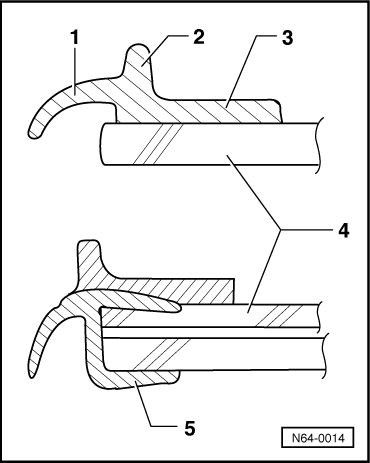

→ New windows are supplied pre-coated with PUR. The pre-coating consists of items 1, 2 and 3.

•      1 -     Sealing lip
•      2 -     Spacing lip
•      3 -     Area for application of adhesive bead
•      4 -     Window glass
•      5 -     Surround (only windscreen)

• ‒ Rub down pre-coating with a dry, lint-free cloth.

• ‒ → Apply a thin coat of activator D 181 801 A1 only on pre-coating
  -2- of the window using applicator -1- D 009 500 25 (felt ball with wire).
• ‒ Allow activator to air dry for at least 10 minutes.

Note:

Activator must not have contact with paint, otherwise the paint finish will be damaged.
