Poly-V belt (elastic) - remove and install

WARNING

Replace the elastic Poly-V belt with service life equal to or more than 60,000 km only in jobs that involve its removal.

Special tools and workshop equipment required

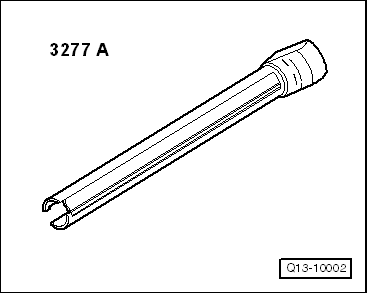

t	Assembly tool -3277 A- or Assembly tool -T10029-

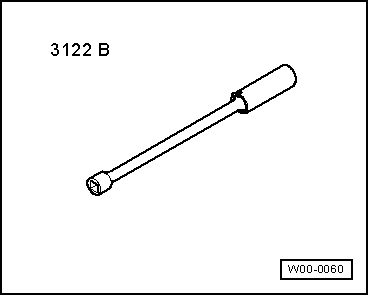

t	Spark plug wrench -3122B-

t	Puller -T02009/A-

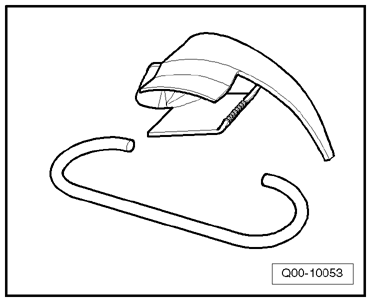

t	Assembly tool

Hook

Note

t	The belt installing tools will be supplied together with their respective replacement belts.

t	For larger belts, the assembly tool, and for smaller belts (air conditioner compressor), the hook will be also supplied.

t	Upon belt removal, do not forget to mark the operation direction, which shall be followed upon installation.

Poly-V belt (elastic) for the Generator (Alternator) -C- and power steering oil pump
