AntennaR11 (01/08 ?)

Make

Volkswagen

Model

Polo Mk4

Section

Infotainment › Antenna system › AntennaR11 (01/08 ?)

Vehicle electricsAntennaR11 (01/08 ?)

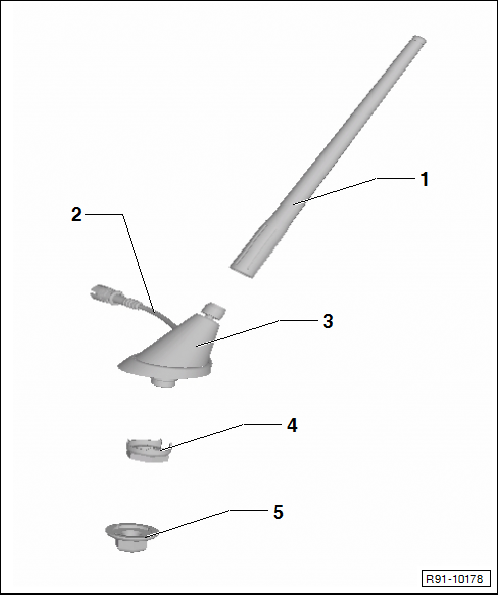

Antenna -R11- (01/08 ►)   Note The roof antenna amplifier is installed in the antenna base.

1 -

2 -	Antenna cable

q	From the roof antenna to the front center console.

q	Remove and install → Chapter.

3 -	Antenna base

q	Remove and install → Chapter.

4 -	Toothed washer

5 -	Hex nut with toothed washer

q	The hex nut is connected to the toothed washer via a plastic ring.

q	Apply contact grease to the inside part of the roof in the area supporting the toothed washer.

q

6 Nm
