Vehicle electricsAntennaR11 ( ? 12/07)

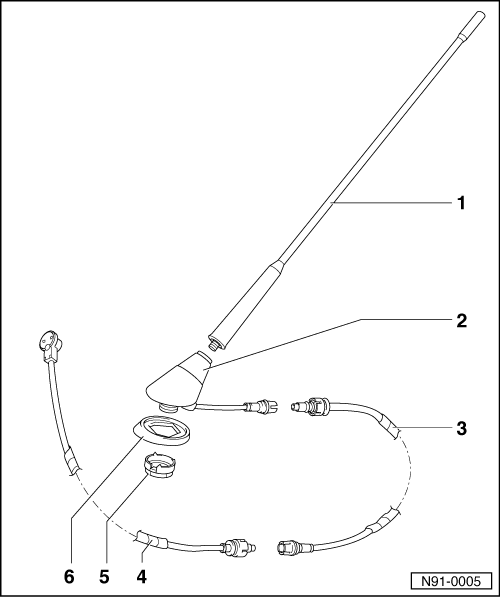

Antenna -R11- ( ► 12/07)   Note The roof antenna amplifier is installed in the antenna base.

1 -	Antenna mast

2 -	Antenna base

q	Remove and install → Chapter.

3 -	Antenna cable

q	From the roof antenna to the front center console.

4 -	Antenna cable

q	From central console to radio.

5 -	Hexagon nut M14 with toothed washer

q	The hex nut is connected to the toothed washer via a plastic ring.

q	Apply contact grease to the inside part of the roof in the area supporting the toothed washer.

6 -

Gasket
