R32 4Motion V6-3.2L (CBRA) (2008)
/Page-339001.png)

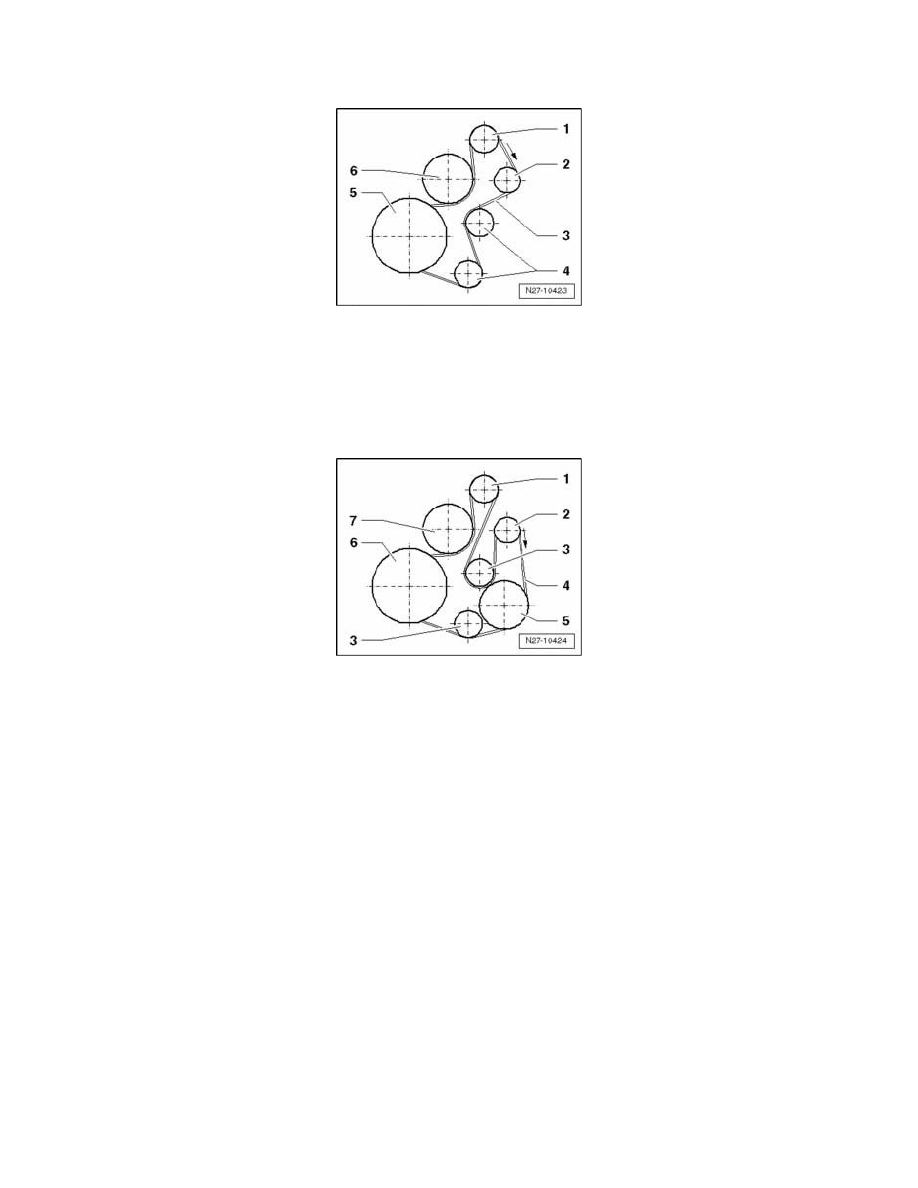

Drive Belt: Diagrams
Ribbed Belt, Routing (CBRA)
Vehicles without A/C system:
1. Tension roller
2. Belt pulley - generator
3. Ribbed belt
4. Idler pulleys
5. Belt pulley - crankshaft
6. Belt pulley - coolant pump
Vehicles with A/C system:
1. Tension roller
2. Belt pulley - generator
3. Idler pulleys
4. Ribbed belt
5. Ribbed belt pulley - A/C compressor
6. Belt pulley - crankshaft
7. Belt pulley - coolant pump
