R32 4Motion V6-3.2L (CBRA) (2008)
/Page-1369002.png)
-

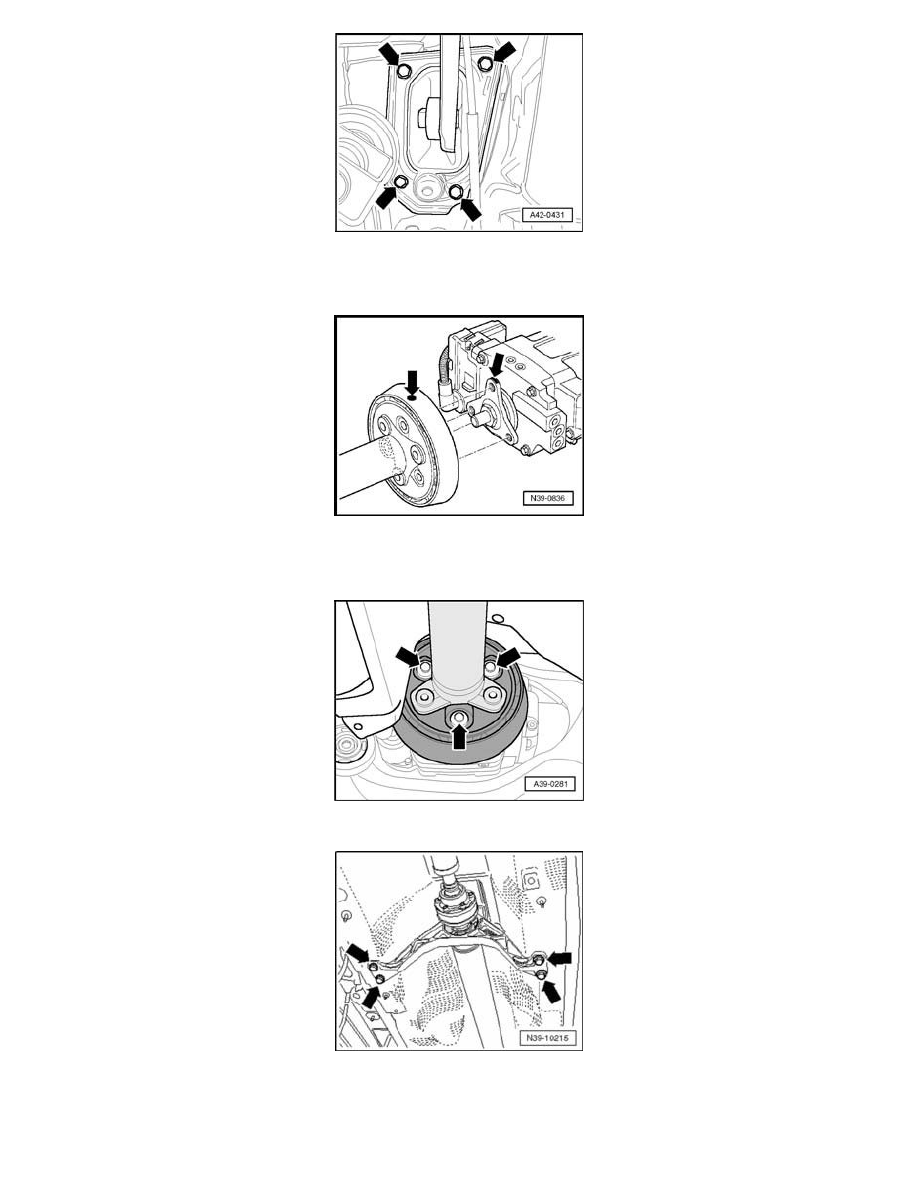

Mark installation position of mounting bracket on body.
-
Remove bolts -arrows-.
-
Disconnect Left Rear Level Control System Sensor G76 connector.
-
Check whether there is a marking (colored point) -arrows- on joint washer or final drive flange. If there is no mark, mark position of joint washer
and final drive flange to each other -arrows-.
-
Disconnect Right Rear ABS Wheel Speed Sensor G44 and Left Rear ABS Wheel Speed Sensor G46 connectors.
-
Remove rear driveshaft tube from rear final drive with joint washer and vibration damper -arrows-.
-
Remove center bracket bolts -arrows- two turns.
