R32 4Motion V6-3.2L (CBRA) (2008)
/Page-1369003.png)
-

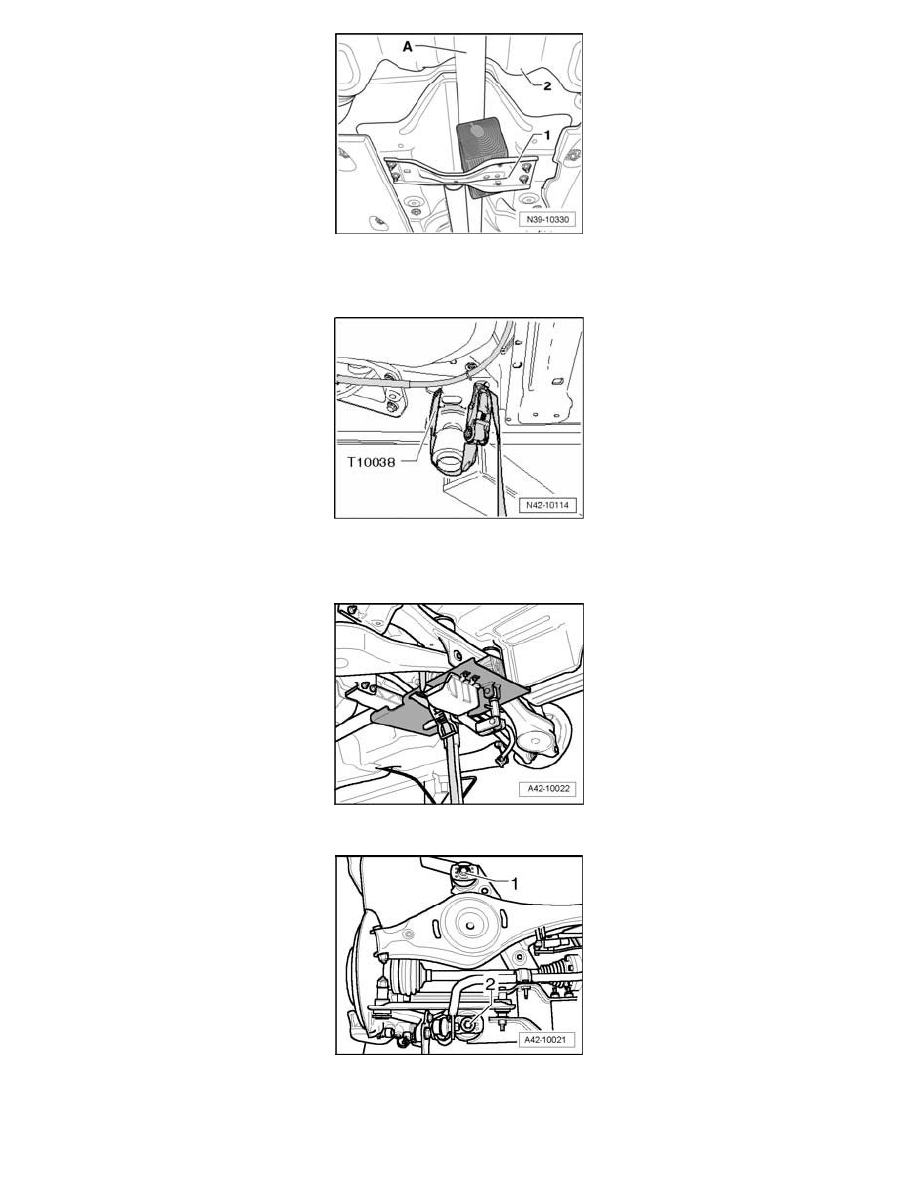

Support driveshaft -A- on the tunnel support -1- with a wood block.
-
Move rear driveshaft tube as far as possible in direction of transmission.
-
Disconnect connector to Haldex clutch above final drive.
-
Now secure vehicle on both sides to lifting arms on hoist with straps T10038.
CAUTION! If vehicle is not secured, it could slide off of hoist.
-
Place engine/transmission jack V.A.G 1383 A with universal transmission support V.A.G 1359/2 below subframe and secure with strap.
To locate subframe, locating fixtures T10096 must be screwed in one after the other on both sides of the vehicle at positions -1- and -2-.
-
Remove hex head bolt -1- or -2- on both sides.
