Rabbit L5-2.5L (BGQ) (2008)
Flywheel: Locations

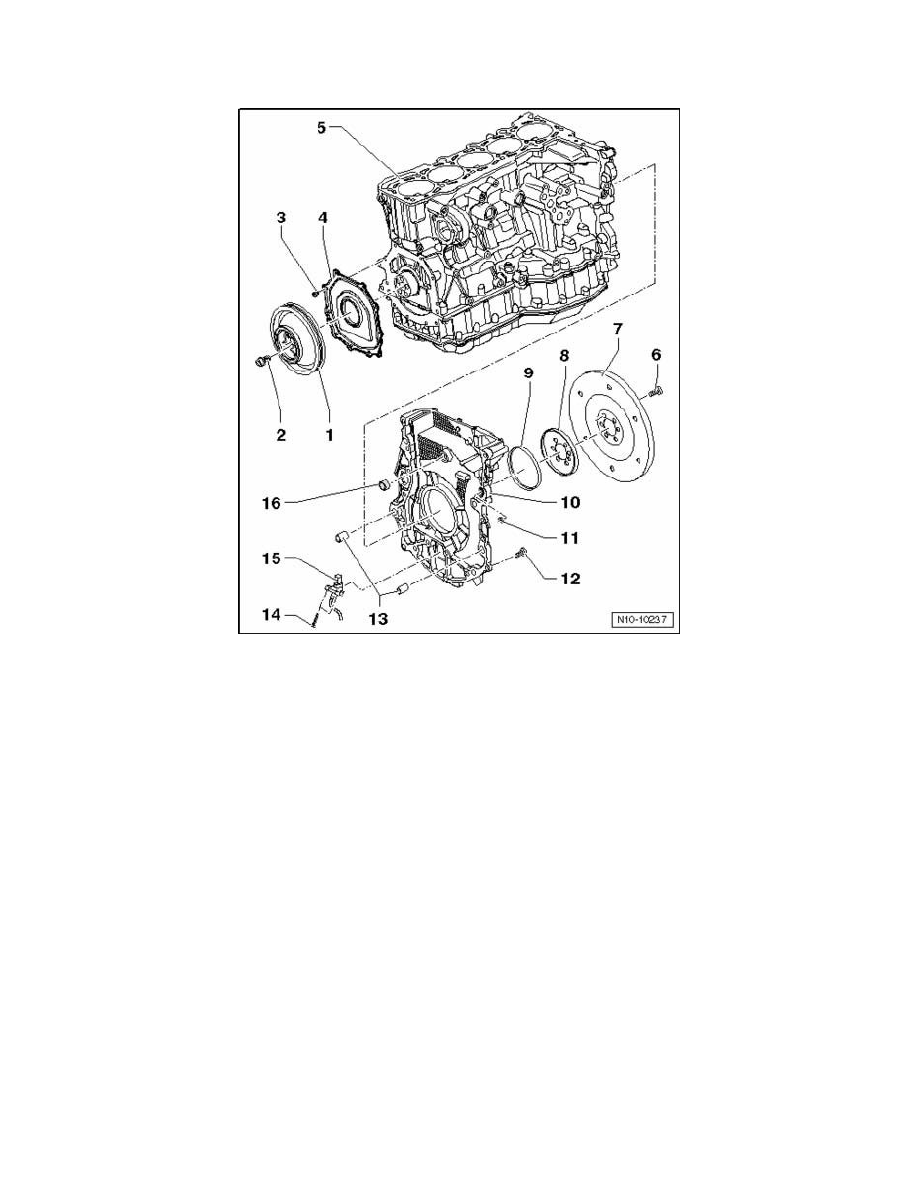

Sealing Flange and Flywheel/Drive Plate Assembly Overview
1 - Belt pulley/vibration damper
^
Multiple versions
2 - Screws
^
5 pieces
^
Replace
^
Only use strength category 10.9
^
50 Nm plus an additional 90° (1/4 turn)
3 - 10 Nm
4 - Sealing flange on belt pulley side
^
With integrated sealing ring
5 - Cylinder block
6 - 60 Nm plus an additional 90° (1/4 turn)
^
Replace
7 - Drive plate/flywheel
^
To remove, secure crankshaft using locking pin T40069.
^
Flywheel must not be pried out or timing housing cover will be damaged
8 - Sensor wheel
^
For Engine Speed (RPM) Sensor G28
^
With position holder
9 - Sealing ring, transmission side
10 - Control housing cover
11 - O-ring
12 - 25 Nm
