Steering Gear: Diagrams

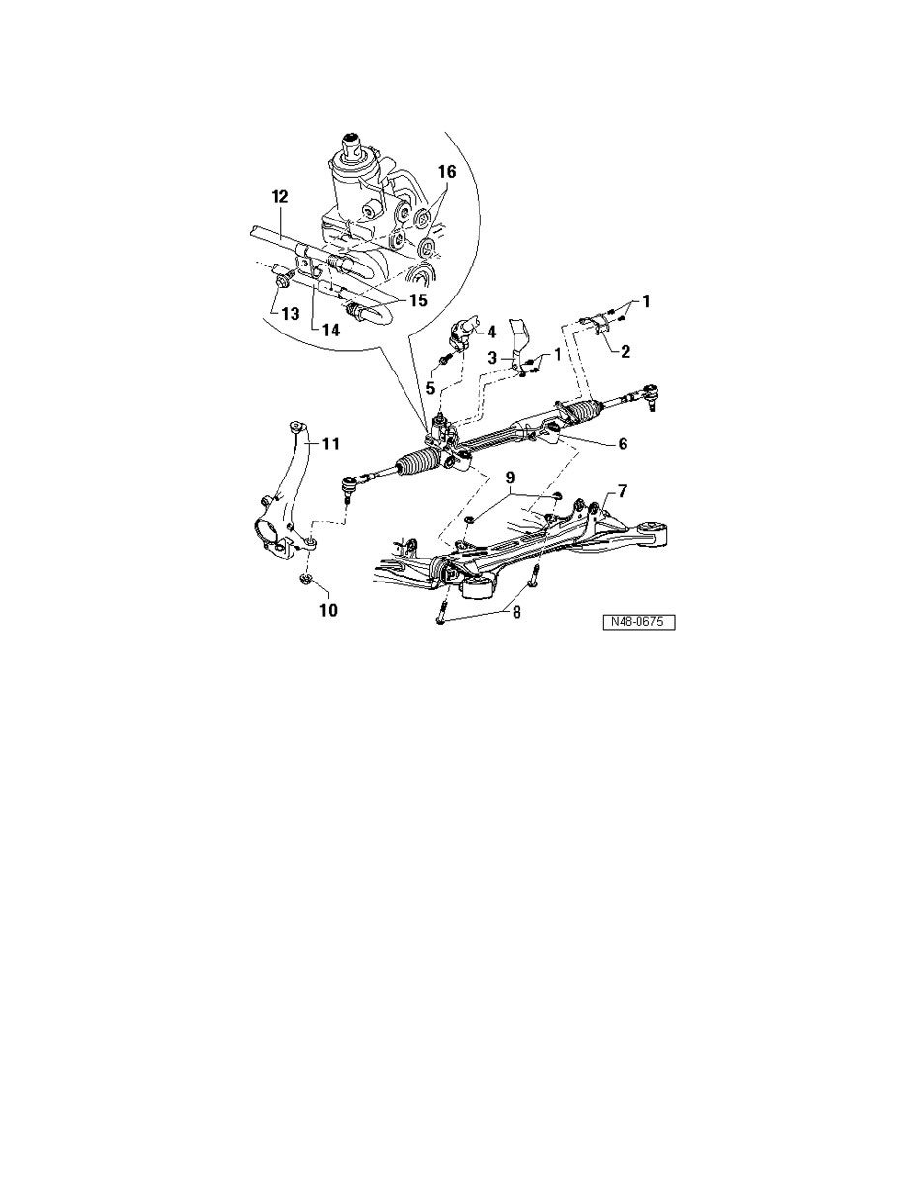

Steering Gear, Assembly Overview

1 - Hex bolt

^

M6 x 16

^

10 Nm

2 - Shield

3 - Shield

4 - Universal joint

5 - Hex bolt

^

M10 x 35

^

40 Nm plus an additional 1/4 turn (90 Degrees)

^

Always replace after removal

6 - Power steering gear

^

For vehicles with servotronic:

^

Servotronic solenoid valve N119

7 - Subframe

8 - Hex bolt

^

M12 x 1.5 x 80

^

90 Nm plus an additional 1/4 turn (90 Degrees)

^

Always replace after removal

9 - Self-locking nut

^

M12 x 1.5

^

Always replace after removal
