Ribbed Belt Routing (Drive Belt)

Make

Volkswagen

Model

Touareg

Engine

V8-4.2L (BHX)

Year

2004

Section

Drive Belt › Diagrams › Ribbed Belt Routing

MaintenanceRibbed Belt Routing · page 1 of 2

Drive Belt: Diagrams
Ribbed Belt Routing

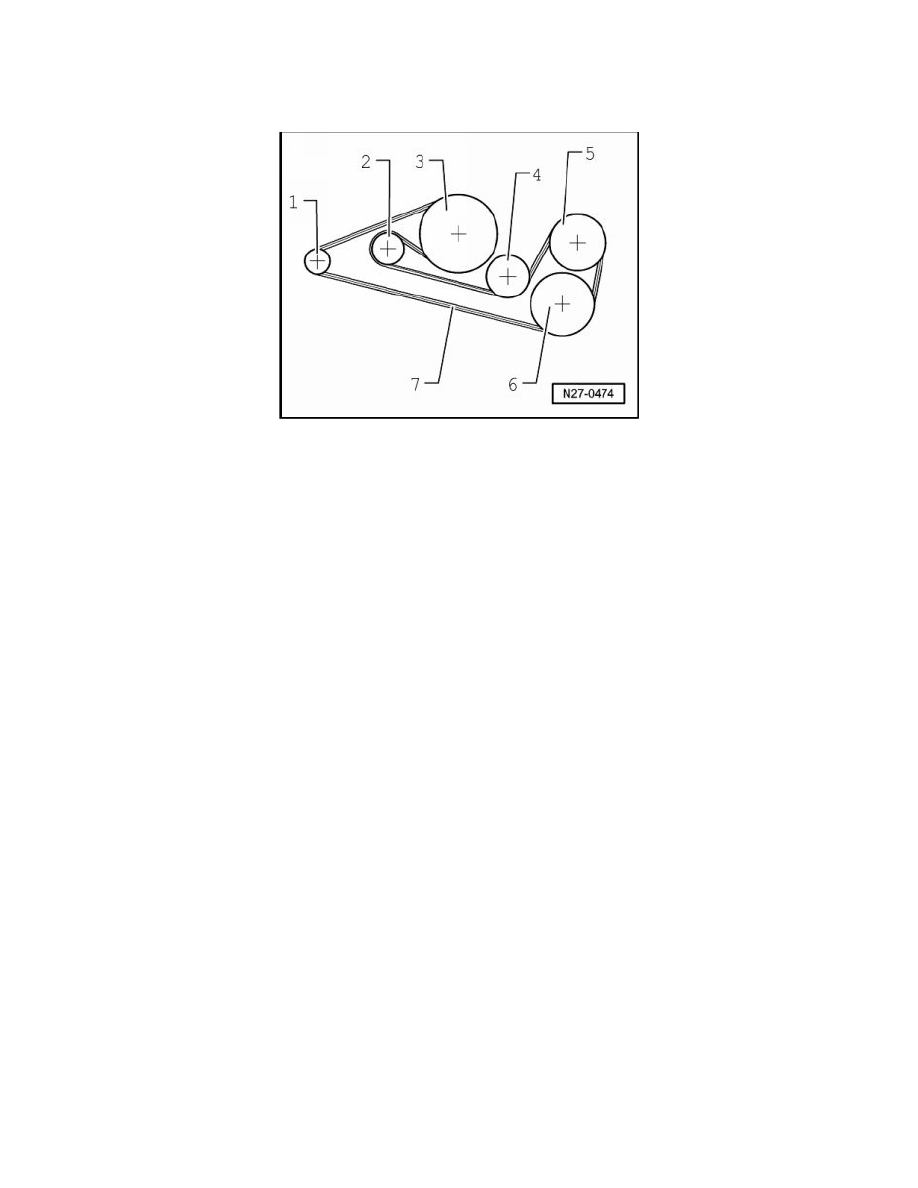

Ribbed Belt Routing

1

Belt pulley - generator

2

Tension roller

3

Belt pulley - crankshaft

4

Idler pulley

5

Belt pulley - air conditioner compressor

6

Belt pulley - power steering pump

7

Ribbed belt - generator, idler pulley, air conditioner compressor, power steering pump, crankshaft, coolant pump and tensioner
