Removing and installing anti-roll bar Special tools and workshop equipment required

t  Torque wrench -V.A.G 1331-

t  Torque wrench -V.A.G 1332- Carry out the following work: Removing –  Loosen wheel bolts. –  Raise vehicle. –  Remove front wheels. –  Remove lower noise insulation → General body repairs, exterior; Rep. gr.66.

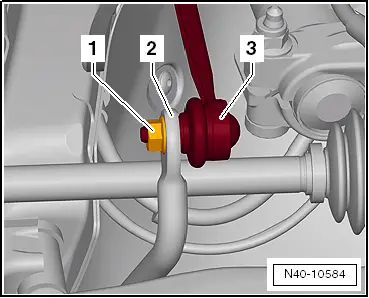

–  Remove hexagon nut -1- from coupling rod (left and right sides). –  Pull out coupling rod -3- from anti-roll bar -2- on left and right side.

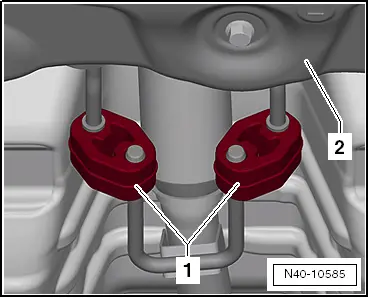

–  Pull retaining rings for exhaust pipe from subframe.

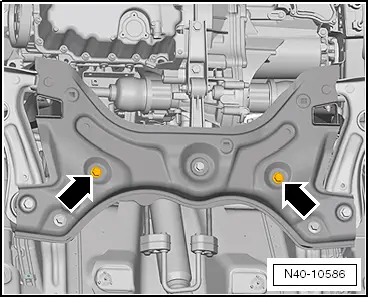

–  Unbolt steering box from subframe -arrows- and tie up with wire (or similar). –  Fix position of subframe → Chapter. –  Lower subframe using engine and gearbox jack -V.A.G 1383 A-.

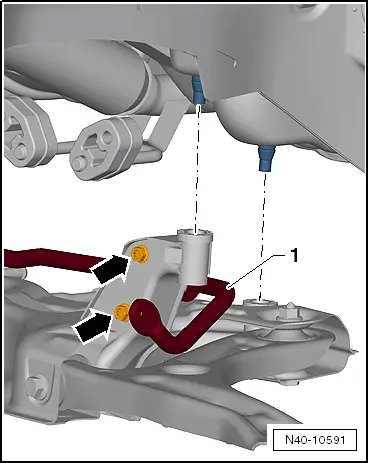

–  Remove bolts -arrows-. –  Remove anti-roll bar -1- backwards. Installing –  Insert anti-roll bar and secure to subframe using clamps. –  Secure subframe → Anchor. Continue installation in reverse order. –  Install wheels and tighten bolts or nuts → Chapter.

Specified torques

Component	Specified torque
Anti-roll bar to subframe t  Use new bolts.	20 Nm + 90° further
Steering box to subframe t  Use new bolts.	50 Nm + 180° further
Coupling rod to anti-roll bar	40 Nm
