Vehicle electricsRemoving and installing starter
| Removing and installing starter |
| Renewing starter on vehicles with start/stop system: |
| Due to the higher requirements on the starter when the start/stop system is activated, e.g. in urban traffic/driving, the deep-cycle resistance has been increased and the ring gear reinforced. |
| When renewing starter, make sure the new one with the correct part designation as shown in → ETKA (electronic parts catalogue) is used. Components adapted to start/stop system are not identified separately and are not or barely different from normal components in their appearance. |
| Special tools and workshop equipment required |
|
|
|
| t
| Torque wrench -V.A.G 1331- |
|
|
|
| –
| Lever off cover -2- and undo nut beneath it. |
| –
| Remove B+ wire -1- from stud. |
| –
| Release connector -3- and pull off. |
|
|
|
| –

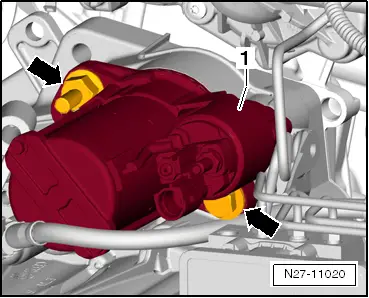

| Undo and remove bolts of starter -arrows- and remove starter -1- upwards out of vehicle. |
| Install in the reverse order of removal. When doing this, note the following: |
| –
| Tighten all threaded connections to torque specified in assembly overview → Chapter. |
|
|
|
