Drive Belt: Diagrams
- Make
- Volvo
- Model
- 700 Series 740
- Engine
- L4-2.3L SOHC VIN 88 B230F
- Year
- 1985
- Section
- Drive Belt › Diagrams
MaintenanceDiagrams · page 1 of 2
Drive Belt: Diagrams

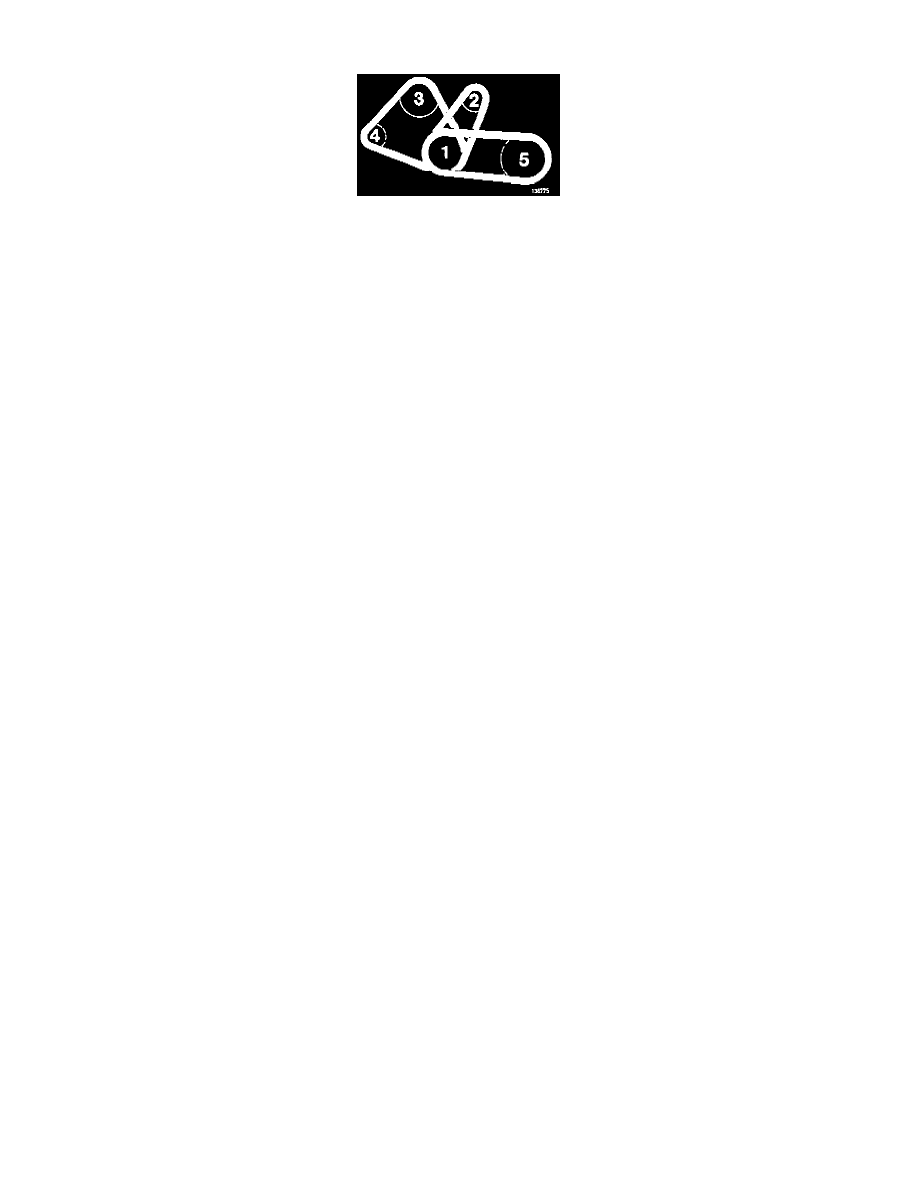

Drive Belt Routing
Refer to Image:
1. Crankshaft pulley
2. Alternator
3. Cooling fan
4. Power steering pump
5. AC Compressor
