Workshop Manuals Factory service & repair Volvo
Volvo 850 Factory Service Manual (1992-1997)10 · 9 Miscellaneous
10 · General

Antennas

Make
Volvo
Model
800 Series 850 Factory Service Manual
Year
1992–1997
Section
99 Miscellaneous › Parts/Accessories Bulletins › Antennas
9 MiscellaneousAntennas

Antennas

Parts/Accessories Bulletins

Applies to: 1993–1997; North America

Now For The 850 GLT !

Antennas

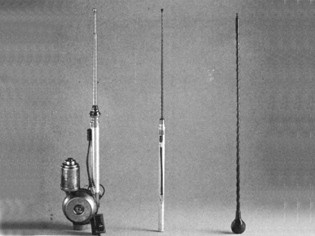

FEATURES

  • Black A-Post Antenna - Utilizes front post for excellent stereo reception. Special design to reduce wind noise.
  • Retractable Black Fender Mount Antenna - Mounts on left rear fender of sedans for maximum isolation from engine and wind noise interference.
  • Black Fiberglass Antenna - Mounts on left rear fender of 740/760 sedans. Non-retractable.
  • Power Antenna - Automatically retracts and extends when radio or ignition is turned on or off.
  • Solid Mast Antenna - Provides maximum durability and reception quality by minimizing electrical connections.
Part No.DescriptionModel/SeriesYearInstall. Time
1128483-3Black A-Post Antenna240/2601976-89.6
3533094-3Black, Solid Mast, D-Pillar Antenna240 Wagon1989-on.2
1384500-32Retractable Black Fender Mount Antenna240/260 Sedans1976-on.2
1384649-8Retractable Black Fender Mount Antenna740/760 Sedans1983-92.2
1384773-6Black Fiberglass Rod Antenna700/900 Sedans1983-on.2
3533342-63AM/FM Power Antenna Base Kit240/260/7401940 760 Sedan1976-on 1983-87.2
3533338-4AM/FM Power Antenna Kit740/940 760 Wagon1985-on 1983-87.2
3545693-83AM/FM Power Antenna 850 GLT1993-on.2
3533095-0Black, Solid Mast Antenna740/760/940 Wagon1983-on.3
3533190-9Install. Kit240 Sedan1976-on--
3533188-3Install. Kit740/760 Sedan1983-on--
3533189-1Install. Kit940 Sedan1991-on--
3545337-2Install. Kit850 GLT1993-on--
1189832-7AM/FM Power Antenna760 Sedan1988-19904.2
1189833-5AM/FM Power Antenna760 Wagon1988-19904.2
  1. Models prior to 1982 require the addition of antenna cable harness, part number 1259532-8
  2. This antenna does not retract below the fender; therefore, it does not require a key.

  3. If either antenna 3533342-6 or 3545693-8 is replacing an existing power antenna, antenna base kit alone can be used; an installation kit is not required.

    First time installation of 3533342-6 or 3545693-3 Sedan Power Antennas will require purchase of appropriate installation kit based on car model as listed above.

  4. Applicable to vehicles with SR-7145 radio.

NOTE: See Accessories Bulletin, GROUP: Audio, NO.: 5A for information on power antenna replacement mast kits.
