Expansion Tube, A/C: Locations

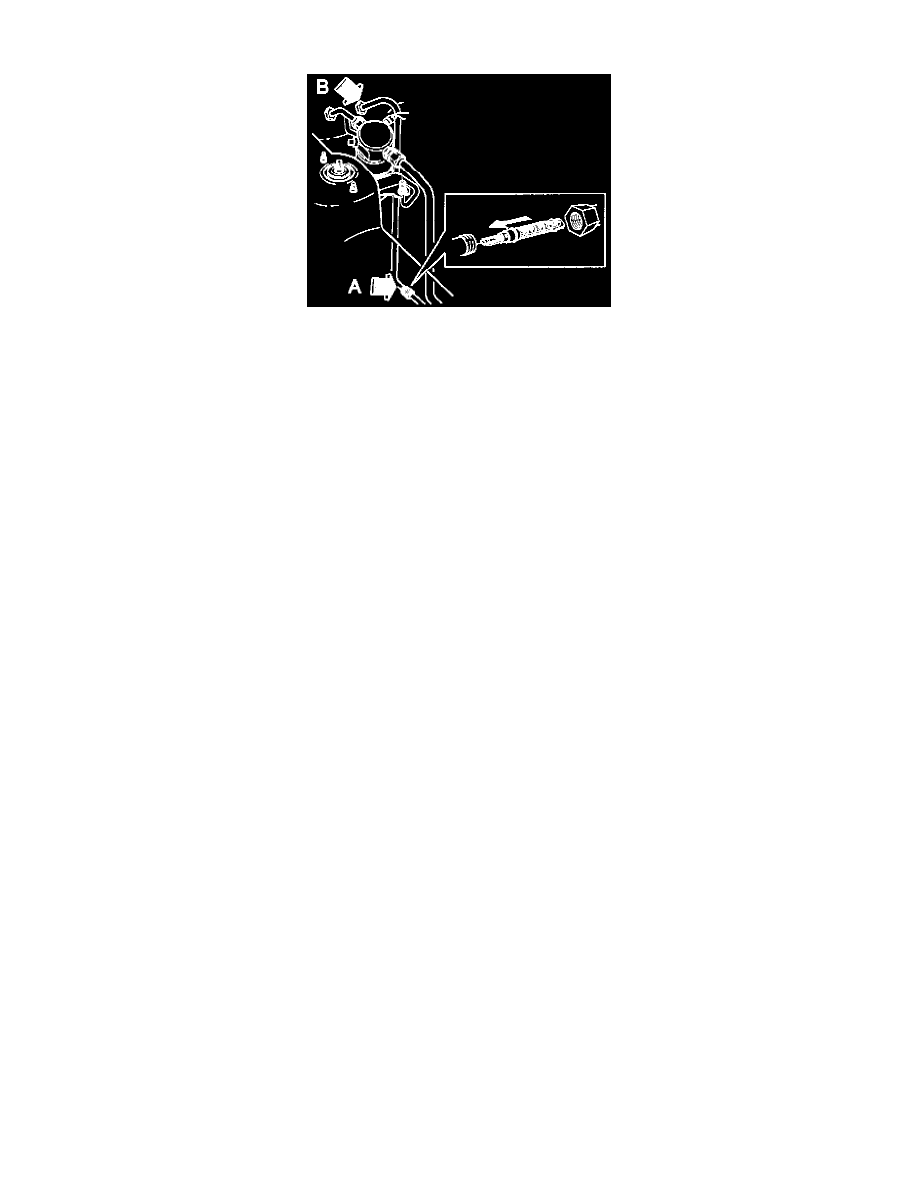

The expansion tube is located in the high-pressure pipe at the union on the side member (arrow A).

Heating and Air Conditioning
Expansion Tube, A/C <--> [Expansion Block/Orifice Tube]
Component Information
Locations
