Vacuum Controller: Service and Repair
Removal

Vacuum Motor Removal

1. Disconnect battery ground lead

Operation (2) applies only to replacement of the heater:

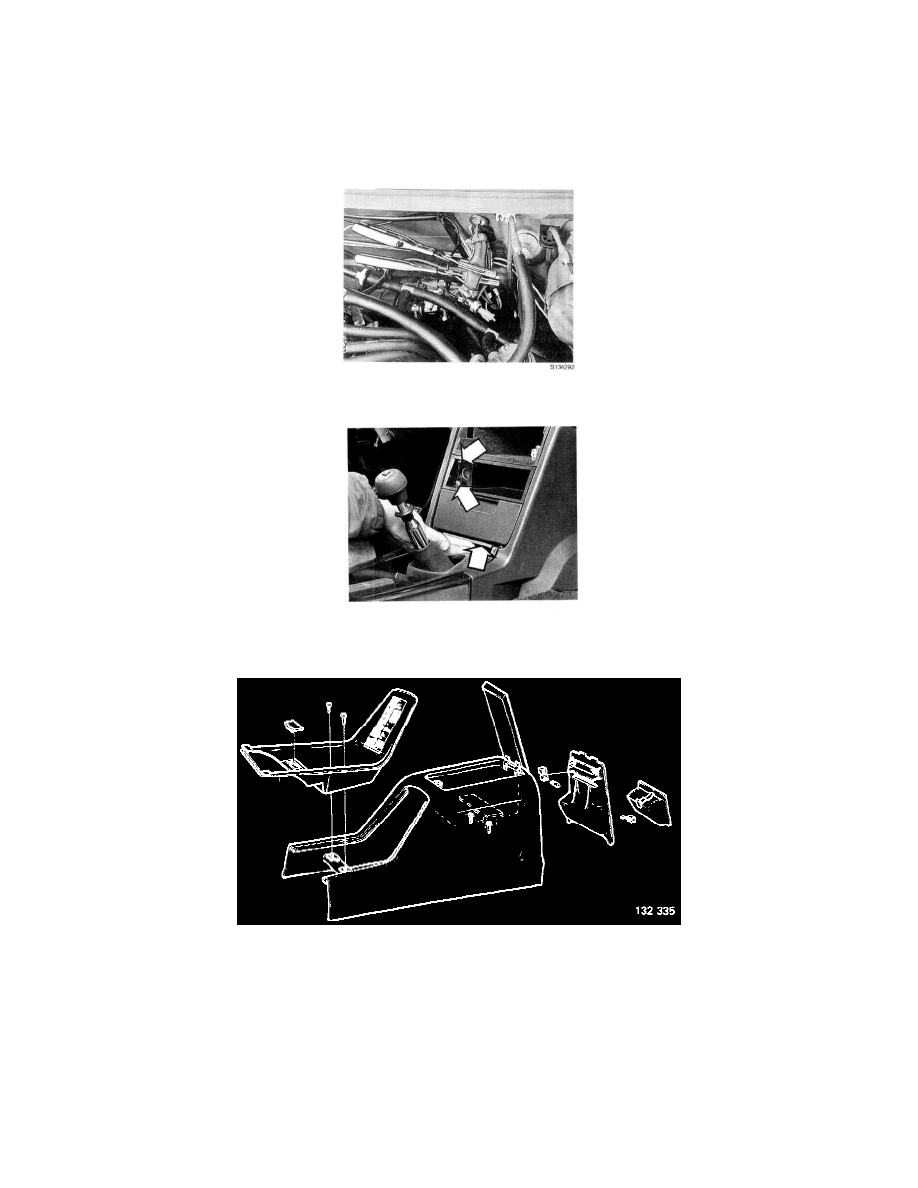

2. Clamp heater hoses in engine compartment as illustrated. Disconnect hoses.

3. Remove:

-

ashtray and holder (press catch under ashtray upward) - cigarette lighter and storage compartment (2 screws under plastic cover).

4. Remove:

-

frame around gear lever and parking brake. Undo connector.

-

rear ashtray complete with panel and light - screws under plastic cover in bottom of storage compartment

-

parking brake cover.
