Instrumentation

Parts/Accessories Bulletins

Applies to: 1991–1995; North America

From an icy roadway to overheated engine oil, Volvo's full range of accessory gauges will warn the driver of a multitude of potentially hazardous conditions. The gauges are designed to complement each Volvo interior, and they provide the same clear, concise read-out as the standard vehicle gauges.

FEATURES:

Tachometer for 240's

A MUST for cars with manual transmissions! Available in 80 mm or 52 mm for installation in either the main instrument cluster or in the side panel. Enables the driver to easily see RPM for proper gear shifting.

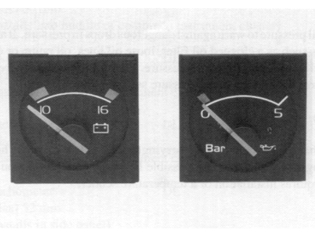

Oil Pressure Gauge

This 5-bar gauge monitors oil pressure to warn against dangerous drops in pressure. It alerts the driver to possible engine damaging conditions such as a clogged oil filter, loose oil lines, oil pump or engine bearing problems. It does not monitor engine oil level - only engine oil pressure. Pressure ratings are expressed in BARS. One BAR is equal to 14.5 PSI. Requires installation of oil pressure sensor.

Oil Temperature Gauge

Recommended for Volvos that are used for towing, carrying heavy loads or driven in high temperature climates. The instrument warns of engine overheating and possible loss of engine lubrication capability. Available in Celsius and Fahrenheit. Requires installation of a temperature sender.

Voltmeter

The voltmeter monitors the electrical system, measuring battery voltage while the engine is running. It helps to spot fluctuations that can signal battery problems, excessive electrical loading, or a voltage regulator malfunction.

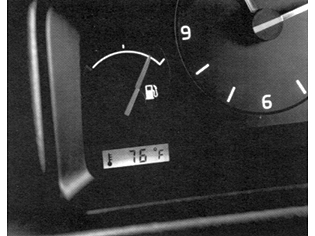

Ambient Temperature Gauge - Digital

This gauge measures outside temperature just above road level, and displays it on the digital readout; when temperature nears the freezing point (approximately 34° F. 2° C), a warning light is illuminated. All gauges can be set to either Fahrenheit or Celsius prior to installation. 1993-on 900³ Series models are prewired to the bumper for the digital ambient temperature gauge.

PART NO.	DESCRIPTION	MODEL/SERIES	YEAR	INSTALL.TIME
240/260
TACHOMETERS:
283546-0	Tachometer (Gas) 60 mm (Installs into middle of combined instrument cluster)	All 4 cylinders	1975-80	.6
3524776-6	Tachometer 80 mm (Installs in combined instrument cluster)	DL	1989-93	.6
1129310-7	Tachometer (Gas) 80 mm (Installs in combined instrument cluster)	DL	1981-88	.6
1343594-6	Tachometer (Gas) 52 mm (Installs in side panel)	DL	1981-93	.6
1129338-8	Tachometer (Diesel) 80 mm (Installs in combined instrument cluster)	Diesel	1981-85	.6
1129336-2	Tachometer (Diesel) 52 mm (Installs in side panel)	Diesel	1981-85	.6

OIL PRESSURE GAUGES (Installs in side panels):
1394754-4	Oil Pressure 52 mm (5 Bar)	All Models	1989-93	.9
1333929-6	Oil Pressure 52 mm (5 Bar)	All Models	1981-88	.9
1333930-4	Oil Pressure Sensor	B23/B230, B21FT, B28¹	1981-93	*
1347361-6	Oil Pressure Sensor	Diesel	1981-85	*

OIL TEMPERATURE GAUGES (Installs in side panels):
1394751-0	Oil Temperature 52 mm (C)	All Models	1989-93	1.0
1343324-8	Oil Temperature 52 mm (C)	All Models	1981-88	1.0
1307535-3	Oil Temperature Sender	All 4 cylinders	1981-93	*
1324624-4	Oil Temperature Sender	B28	1980-86	*
1324625-1²	Oil Temperature Sender	D24, D24T	1981-87	*

VOLTMETERS (Installs in side panels):
1394750-2	Voltmeter - 52mm	All Models	1989-93	.5
1129314-9	Voltmeter	All Models	1981-88	.5

TEMPERATURE GAUGES (Installs in side panels):
3529824-9	Digital Ambient Temperature Gauge (F/C)	All Models	1981-93	.9

GAUGE MOUNTING PANELS (Installs in side panels):
1129661-3	Mounting Kit (3) Instruments	All Models	1981-90
1259730-8	Mounting Kit (1) Instrument	All Models	1981-93

CLOCKS (Installs in side panels):
1394753-6	Clock - 52mm	All Models	1989-93	.3
1188269-3	Clock - 52mm	All Models	1981-88	.3

PART NO.	DESCRIPTION	MODEL/SERIES	YEAR	INSTALL.TIME
700/900
OIL PRESSURE GAUGES:
1333766-2	Oil Pressure Gauge (Top Left Position)	740	l985-90	1.1
		760	1984-87
1333767-0	Oil Pressure Gauge (Top Right Position)	740	1985-90	1.1
		760	1984-87
1333930-4	Oil Pressure Sensor	B23/B230/B234	1984-90	*
		B230FT	1984-86
		B28¹
1363908-3	Oil Pressure Sensor	B280	1987-90	*
1347361-6	Oil Pressure Sensor	Diesel	1984-86	*

OIL TEMPERATURE GAUGES:
1333764-7	Oil Temperature Gauge (F) (Top Left Position)	740	1985-90	1.0
		760	1984-87
1307535-3	Oil Temperature Sensor	B23/B230/B234	1984-90	*
1324625-1²	Oil Temperature Sensor	D24/B28	1984-90	*

VOLTMETER:
1333937-9	Voltmeter Gauge (Top Left Position)	740	1985-90	.6
		760	1984-87

TEMPERATURE GAUGES:
3515882-3	Digital Ambient Temperature Gauge (F/C) (Top Left Position)	740	1985-90	1.1
		760	1984-87
9130198-6	Digital Ambient Temperature Gauge (Lower Left Position)	940	1993-	.6
		960³	1993-94	.6
		740/900⁴	1991-92	1.2
		760⁴	1988-90	1.2
9128759-9	Digital Ambient Temperature Gauge (Lower Left Position)	960³	1995	.6
9166580-2	Digital Ambient Temperature Gauge (Lower left Position)	960³	1996	.6

* Included in gauge installation time.

NOTE: ¹ Requires adapter 464592-5 for B28 application.

² Requires adapter 271436-8 for D24 application.

³ Factory option included in the Winter Package starting in 1994.

⁴ Requires mounting kit 9134088-5.
