4 Power transmissionComponents
Components

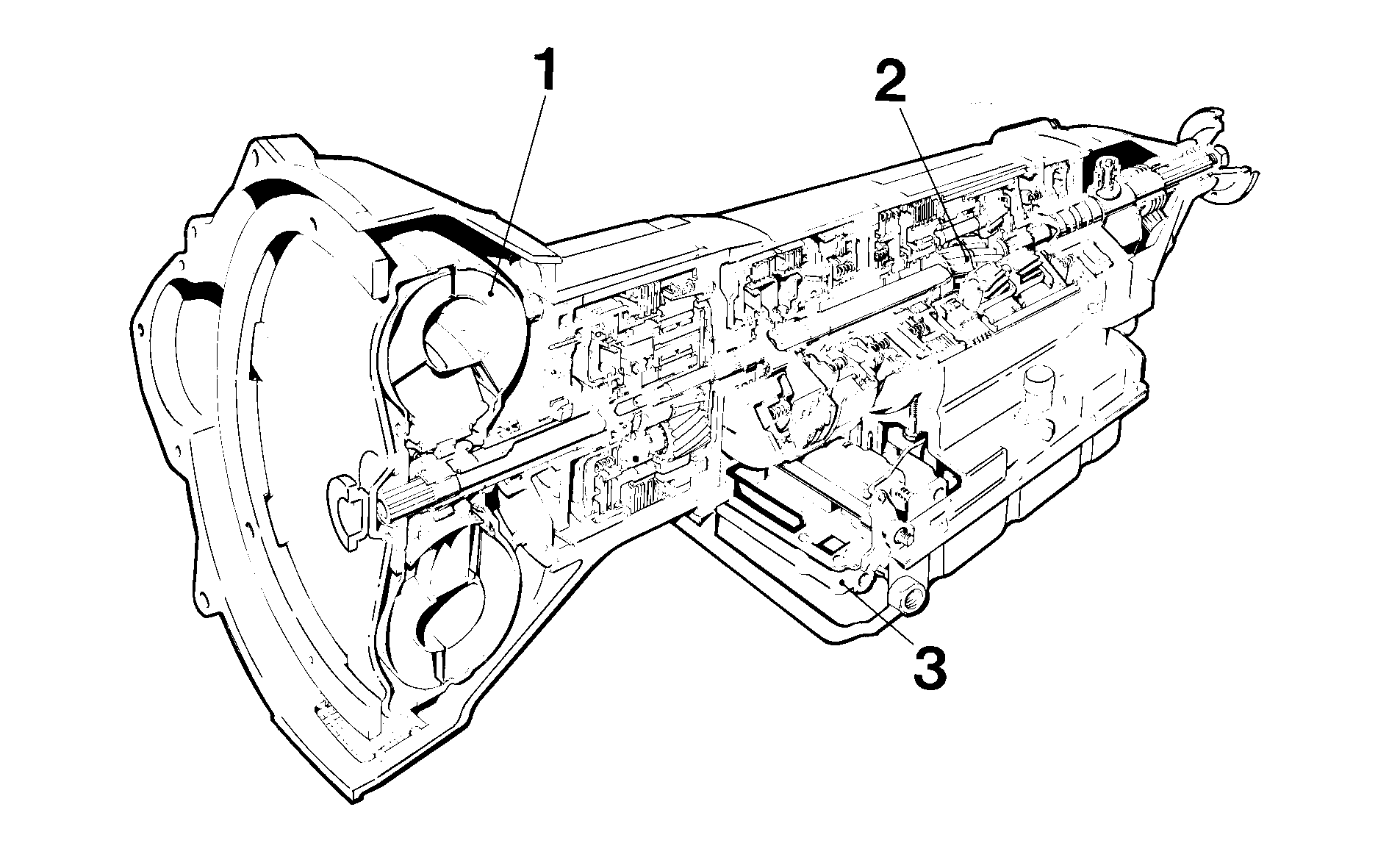

TheAW 70/70 L, AW 71/71 LandAW 72 Lautomatic transmissions are of the same basic construction. Each consists of the following main components:
- Hydraulictorque converter
- Mechanicalplanetary drive gearboxand
- Hydrauliccontrol systemfor gearbox operation.
