3 Electrical systemComponent position

Component position

Function group 352 Lighting, front · Component location

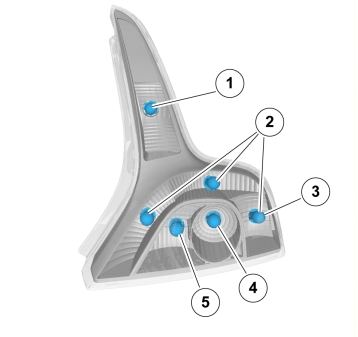

1. Brake light
2. Tail lamps
3. Rear fog light
4. Turn signal lamps
5. Back-up (reversing) lamps

NOTE: A fog tail lamp bulb is only used in one of the tail lamps. In the left tail lamp on left-hand drive cars and in the right on right-hand drive cars.

---

Applies to: 2007

Position of bulbs

1. Low beam
2. High beam
3. Parking lights
4. Direction indicators.
5. Side marker lights
