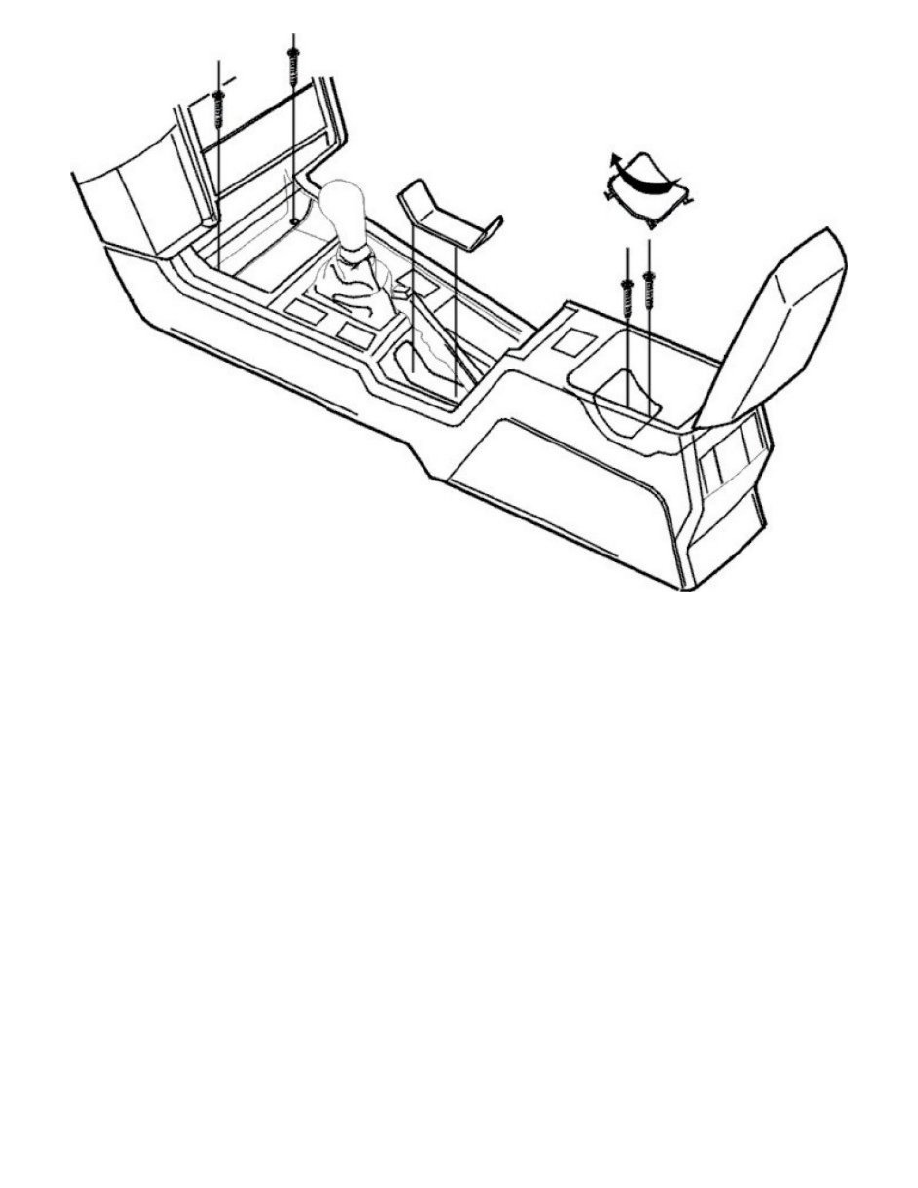

Install

-

the 2 Torx 15 screws at the front of the center console.

-

the cover for the handbrake opening.

-

the 2 Torx 20 screws under the panel in the center console locker.

-

the panel in the center console locker.

Note! Note! Install the rear edge of the panel first.

Installing the cigarette lighter compartment
