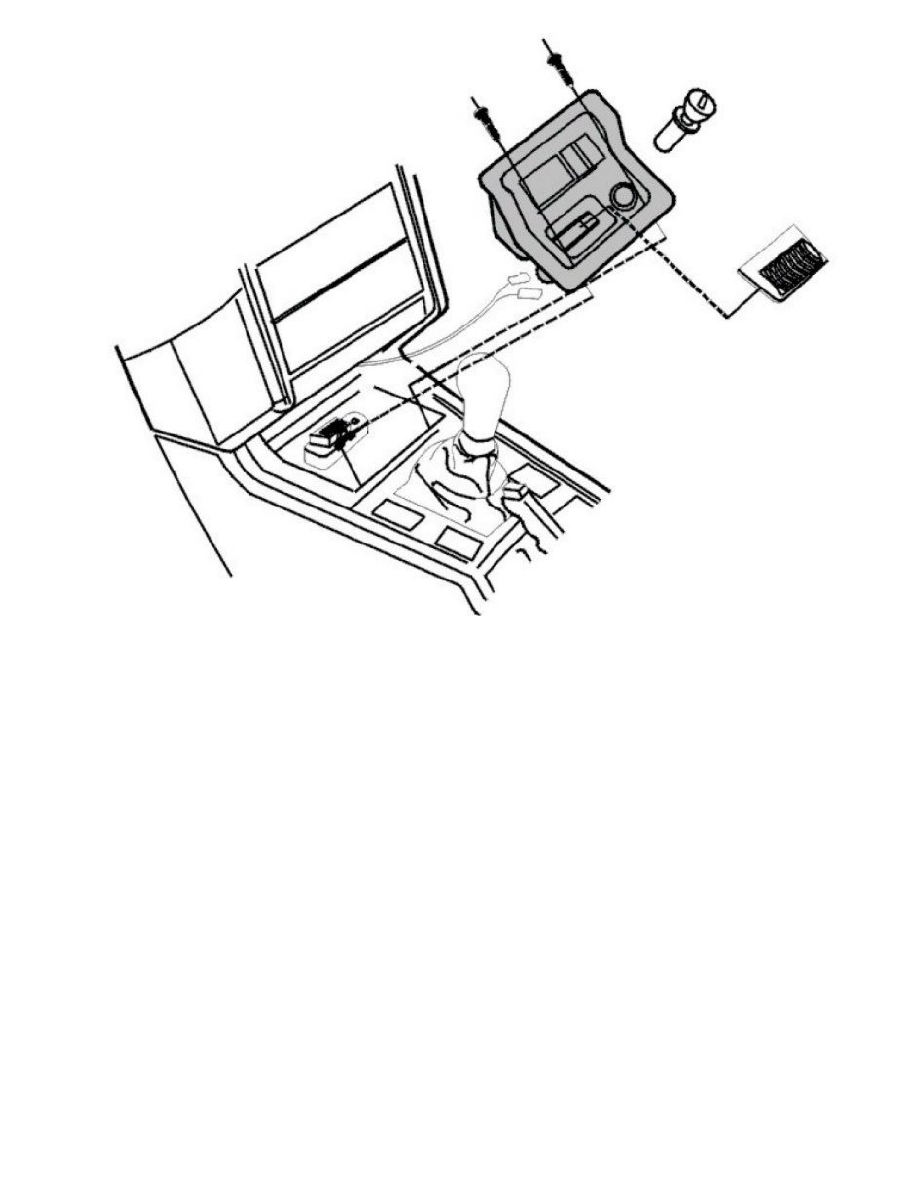

Install

-

the 2 connectors for the cigarette lighter socket and bulb holder in the cigarette lighter compartment.

-

the OBD-II connector to the cigarette lighter compartment. Press in the connector and slide it to the side.

-

the cigarette lighter compartment (2 Torx 20 screws).

-

the OBD-II cover.

-

the cigarette lighter.
