C70 Convertible L5-2.3L Turbo VIN 53 B5234T3 (1998)

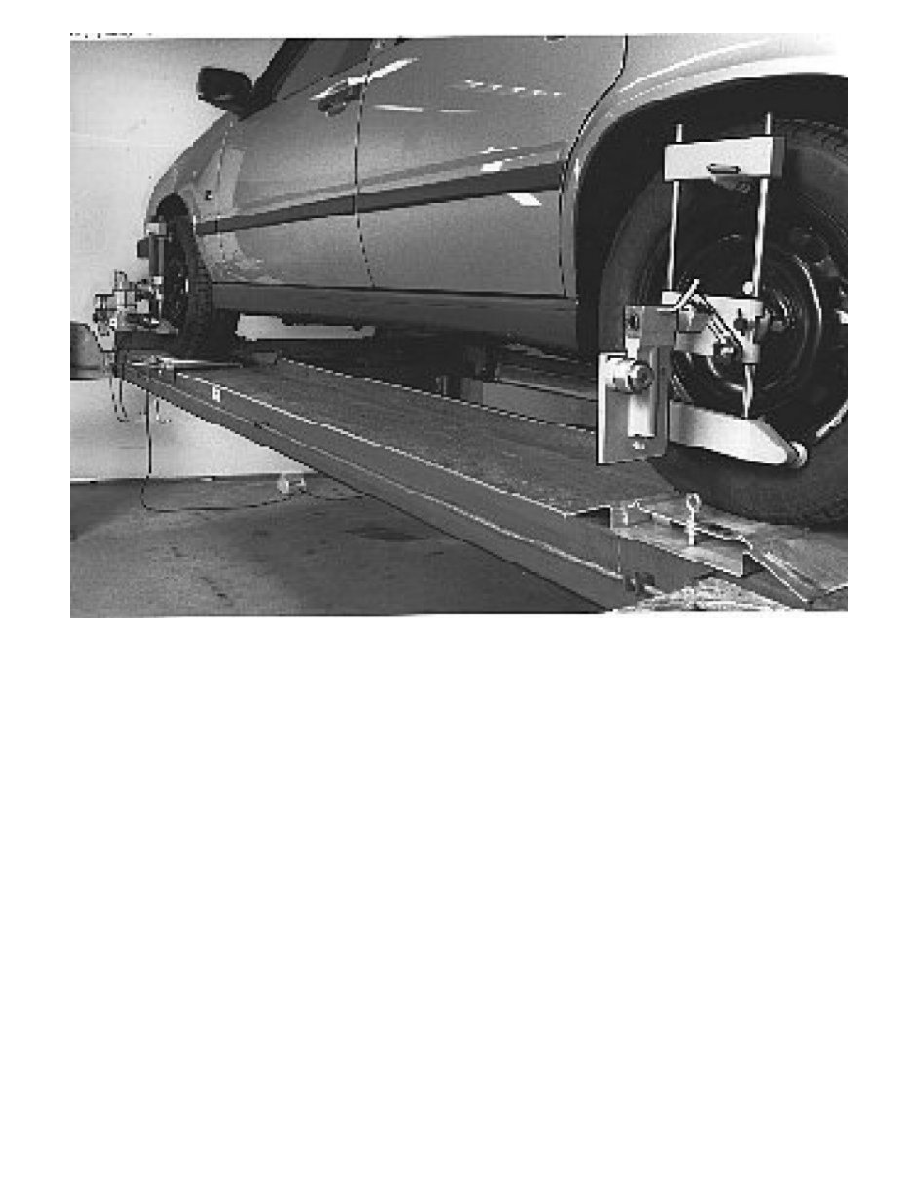

Check that the instruments are adjusted in relation to each other on the front and rear axles. This important so that toe-in can be checked and adjusted in
relation to the axis of symmetry.
The correct toe-in is
0.07° (4.2') measured across both wheels. Maximum deviation is 0.09° (5.4') per wheel.
Adjustment
Note! The example below describes the adjustment of both sides.
