C70 Convertible L5-2.4L Turbo VIN 56 B5244T (2000)
Hang up the sound damper with tie straps so that the damper is as high as possible.

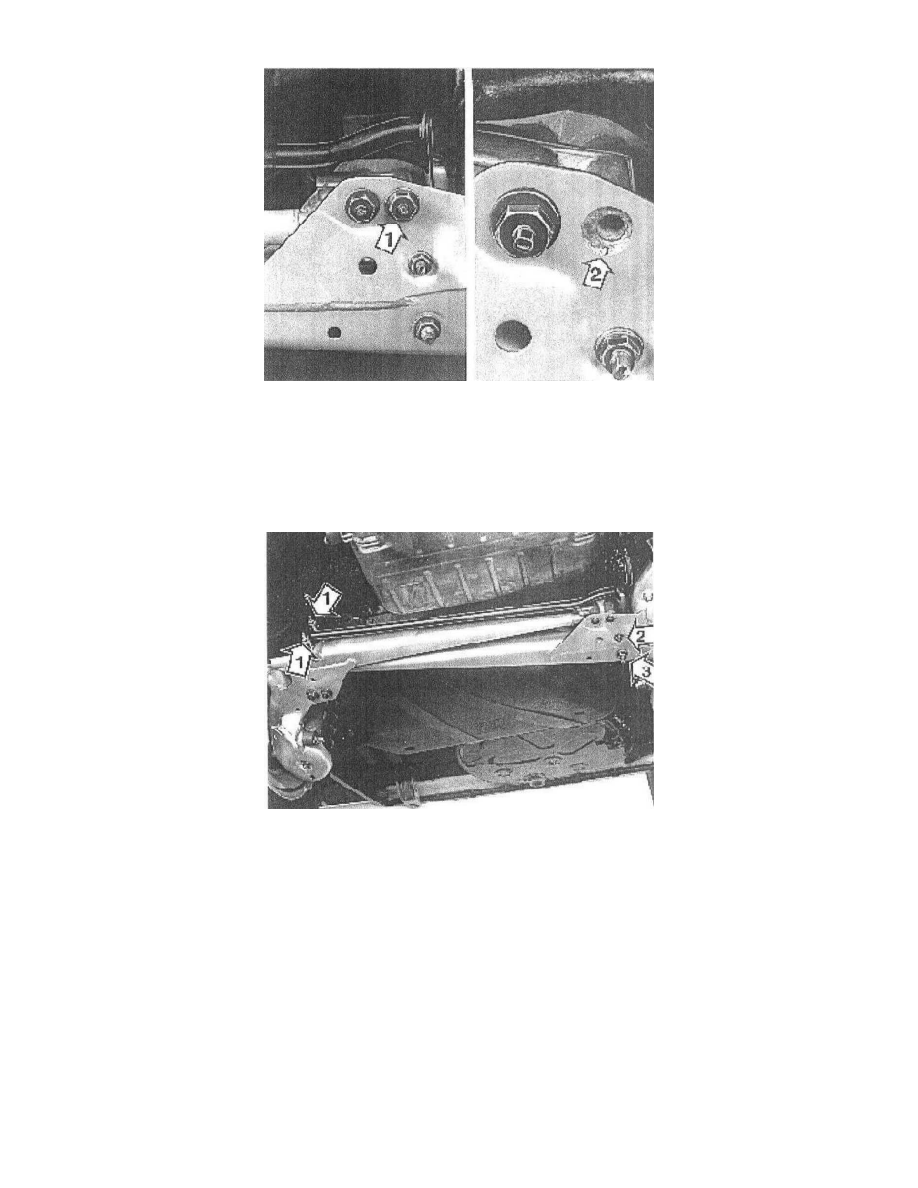

Remove the outer nut (1) to the transverse arm mounting and remove the screw
Mark up the position of the right transverse arm mounting in relation to the left trailing arm hole (2)
Make a punch mark in the mounting at the edge of the hole. Remove the other mounting screw.
Note! It is very important that the marking is carried out correctly otherwise the rear wheel toe-in will be wrong.
Remove:
-
the anti-roll bar mounting screws
-
the anti-roll bar
Installation
Install the new anti-roll bar
1. Install the screws with new nuts 2, 3.Use new screws and nuts Do not tighten the screws yet.
Install the transverse arm mounting onto the trailing arm with new screws and nuts
