C70 Convertible L5-2.4L Turbo VIN 56 B5244T (2000)

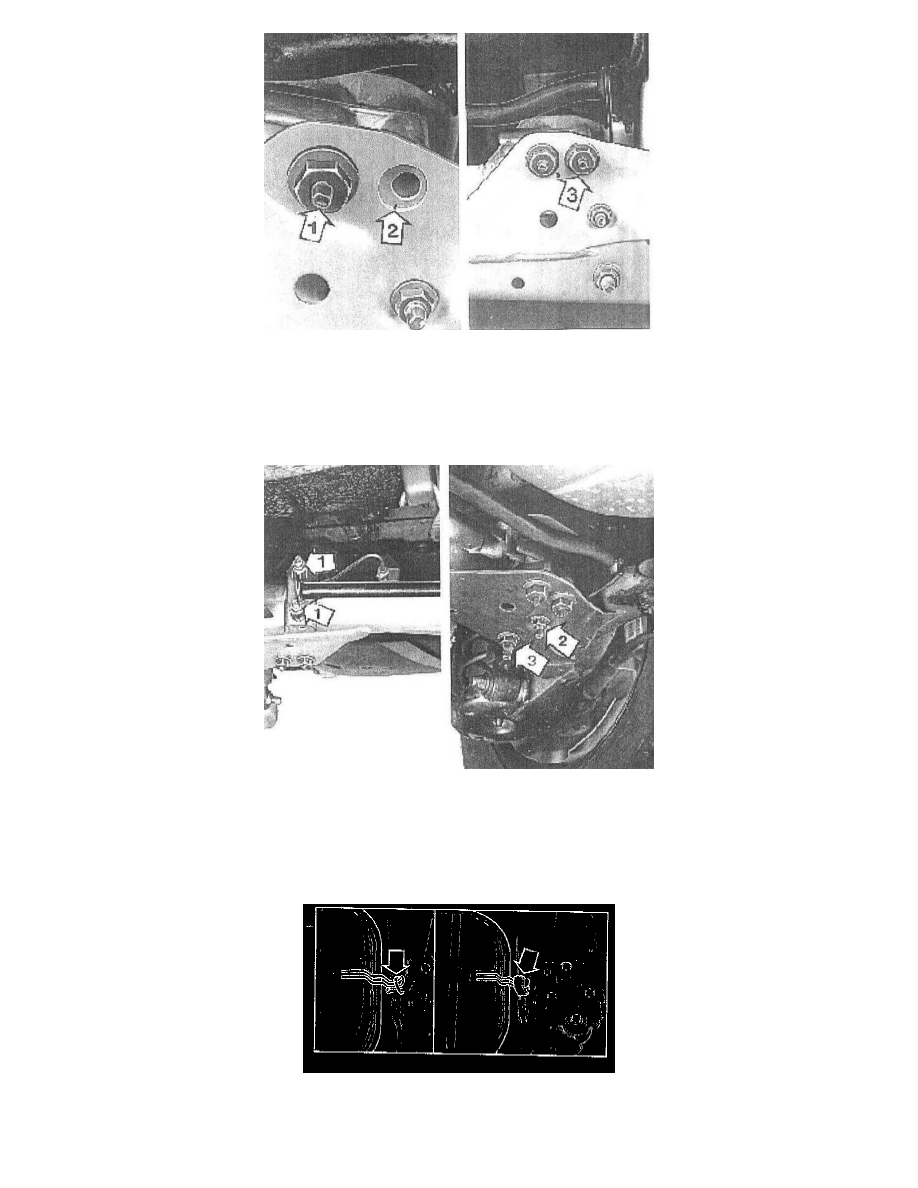

Install the inner screw (1) and nut. Adjust mounting as marked (2). Tighten the nut so that the position is fixed.
Install screw (3) and nut.
Tighten the nuts to 50 Nm (36.9 ft. lbs.) and angle tighten 120°.
Use bevel protractor 951 2050.
Tighten anti-roll bar mounting screws
1. Tighten to 50 Nm (36.9 ft. lbs.)
2. Tighten to 50 Nm (36.9 ft. lbs.) and angle-tighten 90°
3. Tighten to 65 Nm (47.9 ft. lbs.). Angle-tighten to 90°.
Use bevel protractor 951 2050.
Cut off the tie strap holding sound damper up
Reinstall rubber mounting
