C70 Convertible L5-2.4L Turbo VIN 56 B5244T (2000)

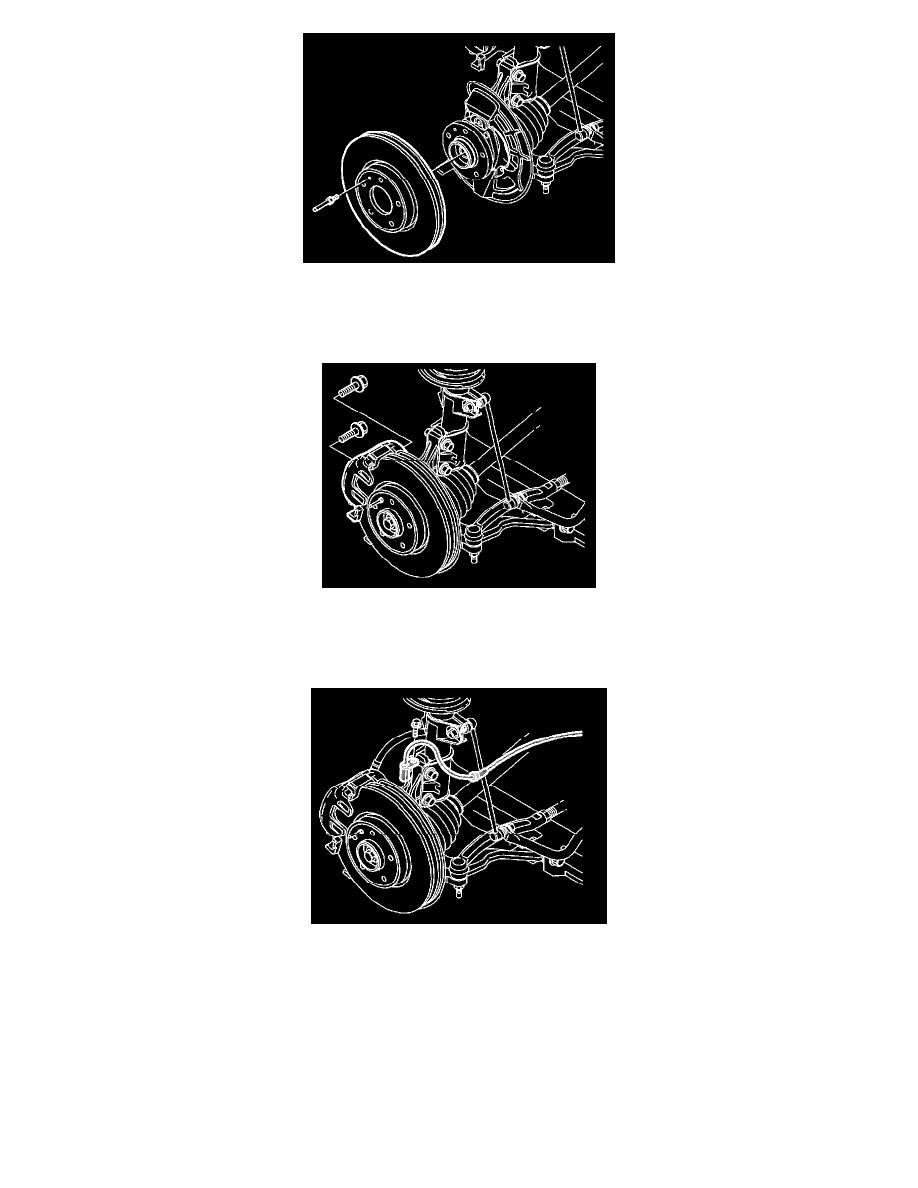

Check that the brake disc mating surfaces to the wheel bearing unit are smooth and even.
Install
-
the brake disc.
-
the brake disc locating pin. Tighten to 8 Nm (5.9 ft. lbs.).
Check the mating surfaces of the brake caliper and stub axle.
Clean and grease the surfaces of the steering limiter.
Install the brake caliper. Use new screws. Tighten to 100 Nm (73.8 ft. lbs.).
Tighten the center screw of the drive shaft to 50 Nm (36.9 ft. lbs.). Counterhold the brake disc with a screwdriver.
Clean and check that the ABS sensor mating surface on the stub axle is flat.
Apply a very small amount of grease to the mating surface.
Install the ABS sensor cable in the holder on the spring strut.
Install the ABS sensor. Lubricate the screw and tighten to 10 Nm (7.4 ft. lbs.).
