C70 Coupe L5-2.3L Turbo VIN 53 B5234T3 (2001)
Air Door Cable: Service and Repair
Replacing or adjusting control cables / mechanical rear section and control panel / front section (Manual climate control / STANDARD)
Replacing or adjusting control cables / mechanical rear section and control panel / front section (Manual climate control / STANDARD)
Preparations, passenger side
-
Remove the glove compartment. See Interior, exterior Panel and SRS passenger airbag module See: Restraint Systems/Air Bag Systems/Air
Bag/Service and Repair/Panel and SRS Passenger Airbag Module
-
Remove the soundproofing panel. See Interior, exterior Dashboard See: Body and Frame/Interior Moulding / Trim/Dashboard / Instrument
Panel/Service and Repair/Dashboard
-

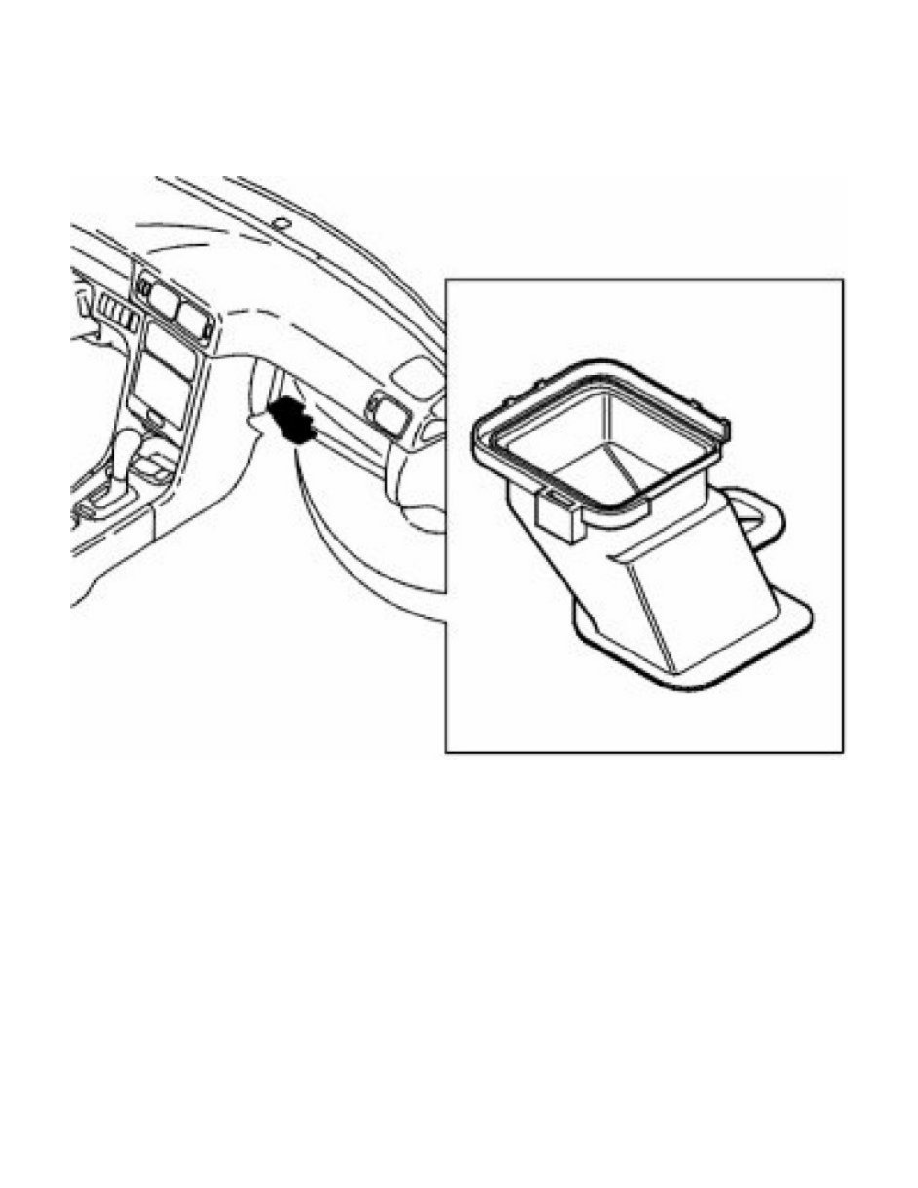

Remove the floor air ducts.
