C70 Coupe L5-2.3L Turbo VIN 53 B5234T3 (2001)
Ambient Temperature Sensor / Switch HVAC: Removal and Replacement
Replacing outside temperature sensor (Electronic climate control)
Replacing outside temperature sensor (Electronic climate control)
Removing outside temperature sensor (Electronic climate control)
-
Ignition off
-
Remove the glove compartment. See Interior, exterior Panel and SRS passenger airbag module See: Restraint Systems/Air Bag Systems/Air
Bag/Service and Repair/Panel and SRS Passenger Airbag Module
-
Remove the soundproofing panel. See Interior, exterior Dashboard See: Body and Frame/Interior Moulding / Trim/Dashboard / Instrument
Panel/Service and Repair/Dashboard
-

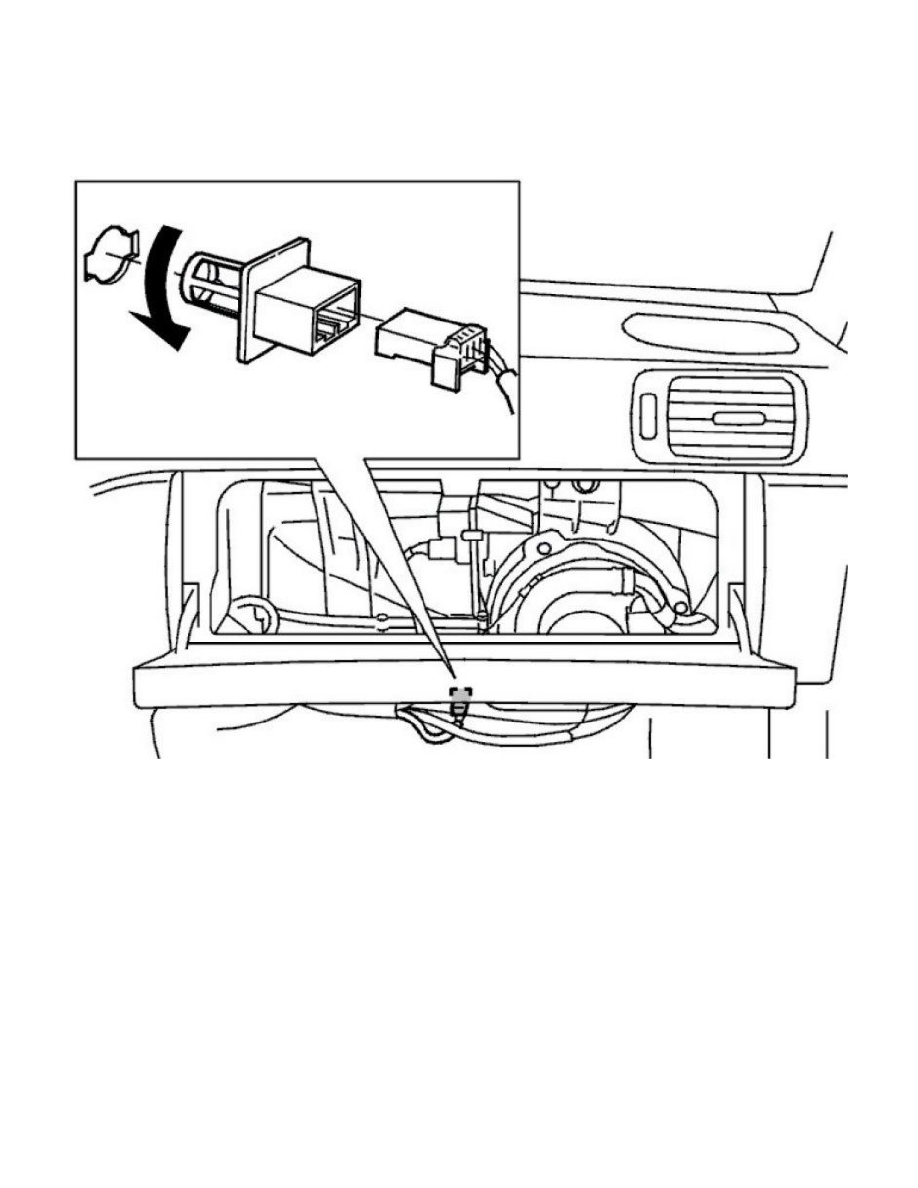

Remove the outside temperature sensor. Twist the sensor counter-clockwise and pull it straight out
-
Disconnect the sensor connector.
Installing outside temperature sensor (Electronic climate control)
In reverse order.
Finishing
-
Check that the temperature sensor is working by reading off the outside temperature
-
Check that no diagnostic trouble codes (DTCs) were stored during fault-tracing.
