C70 Coupe L5-2.3L Turbo VIN 53 B5234T3 (2001)
Control Module HVAC: Removal and Replacement
Replacing ECC control module
Replacing ECC control module
Preparations:
Note! Before replacing the control module read off data from the control module. Program this data back into the new control module.
Removing ECC control module
-
Ignition off.
-
Remove radio.
-

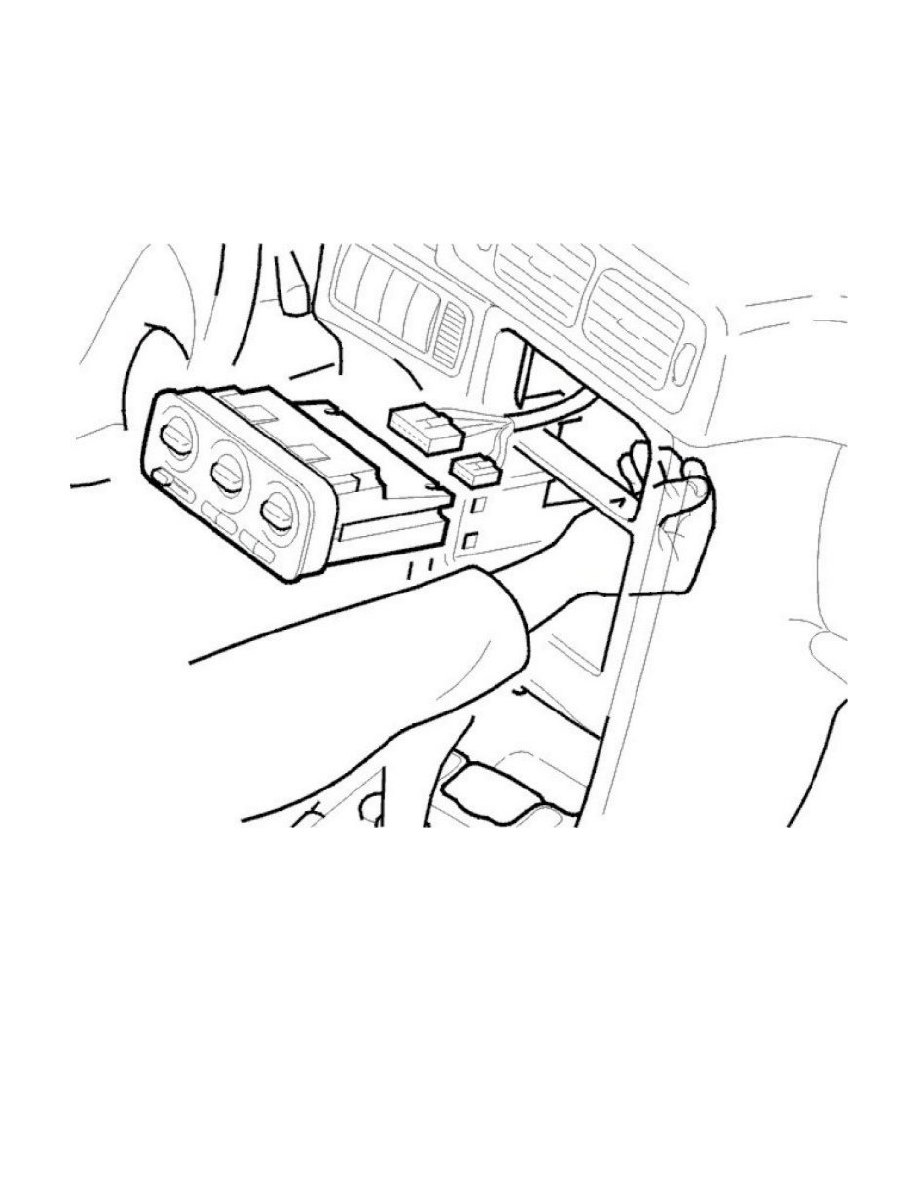

Insert your hand through the radio compartment and remove the ECC control module by pressing it out from behind.
-
Disconnect both ECC control module connectors.
Check
-
Check that the control module connectors are intact.
Installing ECC control module
In reverse order.
Follow-up work
-
Program data read off the old control module.
-
Self-adjustment of the motors should be carried out after programming.
-
Check that no diagnostic trouble codes (DTCs) have been stored while the repair was carried out.
