3 Electrical systemBulbs

Bulbs

Specifications, mechanical

Applies to: 2001–2004

Specifications

Bulbs

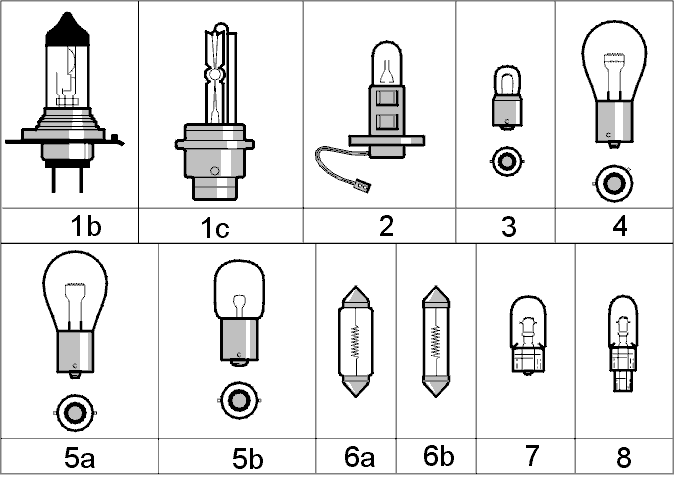

The function of the lamp:	Power:	Socket type:	No:
Headlamps (H7)	55	PX26d	1B
The high beam bulb (at low beam in Xenon lamps)	55	PX26d	1B
Xenon lamp (D2R)	35	P32d-3	1C
Fog lamps (H3)		55	PK22.5	2
Front parking lamps		4	BA 9s	3
Turn signal lamps, front/rear		21	BAU 15s	4
Sidemarker lamps, front/rear		3	W2.1x9.5d	7
Side turn signal flashers		5	W2.1x9.5d	7
Tail lamps		5	BA 15s	5B
Stop (brake) lamps		21	BA 15s	5A
Tail lamps and rear fog lamp		21	BA 15s	5A
License plate lighting, S40		5	W2.1x9.5d	7
License plate lighting, V40		5	SV 8.5	6A
Courtesy lighting	5	SV 5.5	6B
Driver's side courtesy lighting	10	SV 8.5	6A
Vanity mirror lighting	1.2	SV 5.5	6B
Rear reading lamps	5	W2.1x9.5d	7
Cargo compartment lighting	5	SV 8.5	6A
Lighting, heater control/ECC	1.2	W2x4.6d	8
Glove compartment lighting	5	SV 8.5	6A
Instrument lighting	3	W2x4.6d	8
Lighting for the switches	1.2	W2x4.6d	8
Lighting, check and warning lamps		1.2	W2x4.6d	8
Cigarette lighter lamp	1.2	W2x4.6d	8

---

Applies to: 2001–2004

Specifications

Bulbs

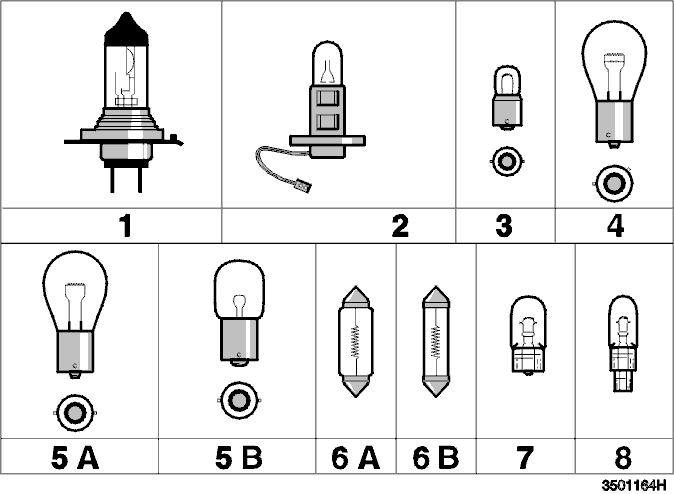

The function of the lamp:	Power:	Socket type:	No:
Headlamps (H7)	55	PX26d	1B
Fog lamps (H3)		55	PK22.5	2
Front parking lamps		4	BA 9s	3
Turn signal lamps, front/rear		21	BAU 15s	4
Sidemarker lamps, front/rear		3	W2.1x9.5d	7
Side turn signal flashers		5	W2.1x9.5d	7
Tail lamps		5	BA 15s	5A
Stop lamps		21	BA 15s	5B
Tail lamps and rear fog lamp		21	BA 15s	5A
License plate lighting, S40		5	W2.1x9.5d	7
License plate lighting, V40		5	SV 8.5	6A
Courtesy lighting	5	SV 5.5	6B
Driver's side courtesy lighting	10	SV 8.5	6A
Vanity mirror lighting	1.2	SV 5.5	6B
Rear reading lamps	5	W2.1x9.5d	7
Cargo compartment lighting	10	SV 8.5	6A
Lighting, heater control/ECC	1.2	W2x4.6d	8
Glove compartment lighting	5	SV 8.5	6A
Instrument lighting	3	W2x4.6d	8
Lighting for the switches	1.2	W2x4.6d	8
Lighting, check and warning lamps		1.2	W2x4.6d	8
Cigarette lighter lamp	1.2	W2x4.6d	8
