S60 2.5T L5-2.5L Turbo VIN 59 B5254T2 (2006)
Applies to cars with parking assistance
-
Detach the parking assistance module (PAM) from its location on the left-hand (model year 2005-) / right-hand (model year -2004) side of the
cargo compartment.
-
Detach the smaller connector from the control module.
Preparations, rear suspension
-
Raise the car.
-
Remove the rear wheels.

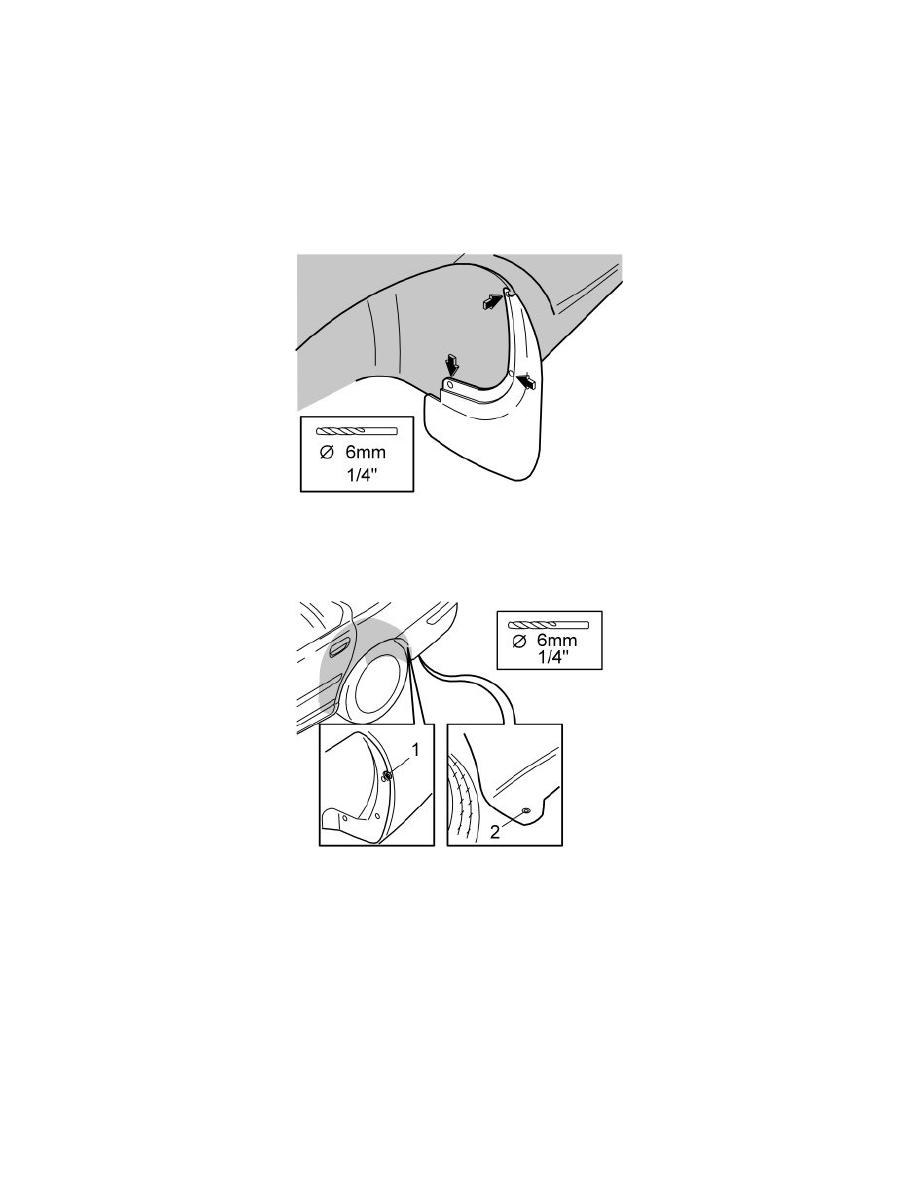

Illustration A only applies to cars with mudguards
-
Carefully drill out the rivets that hold the mudguard in place on both sides. Use a -6 mm (1/4") diameter drill bit.
-
Remove the mudflaps.
Illustration B applies to all cars
-
Unscrew the screw (1) almost all the way on the left and right-hand sides in the rear edge of the wheel arch.
-
Press the screw using a screwdriver until the loose end pieces on the inside of the bumper cover are pressed backwards.
-
Carefully drill out the rivets (2) underneath the bumper on both sides. Use a -6 mm (1/4") diameter drill bit. Do not damage any of the plastic
components.
Note! There may be another installation procedure with more blind rivets on older cars.
Illustration A
