S60 2.5T L5-2.5L Turbo VIN 59 B5254T2 (2006)

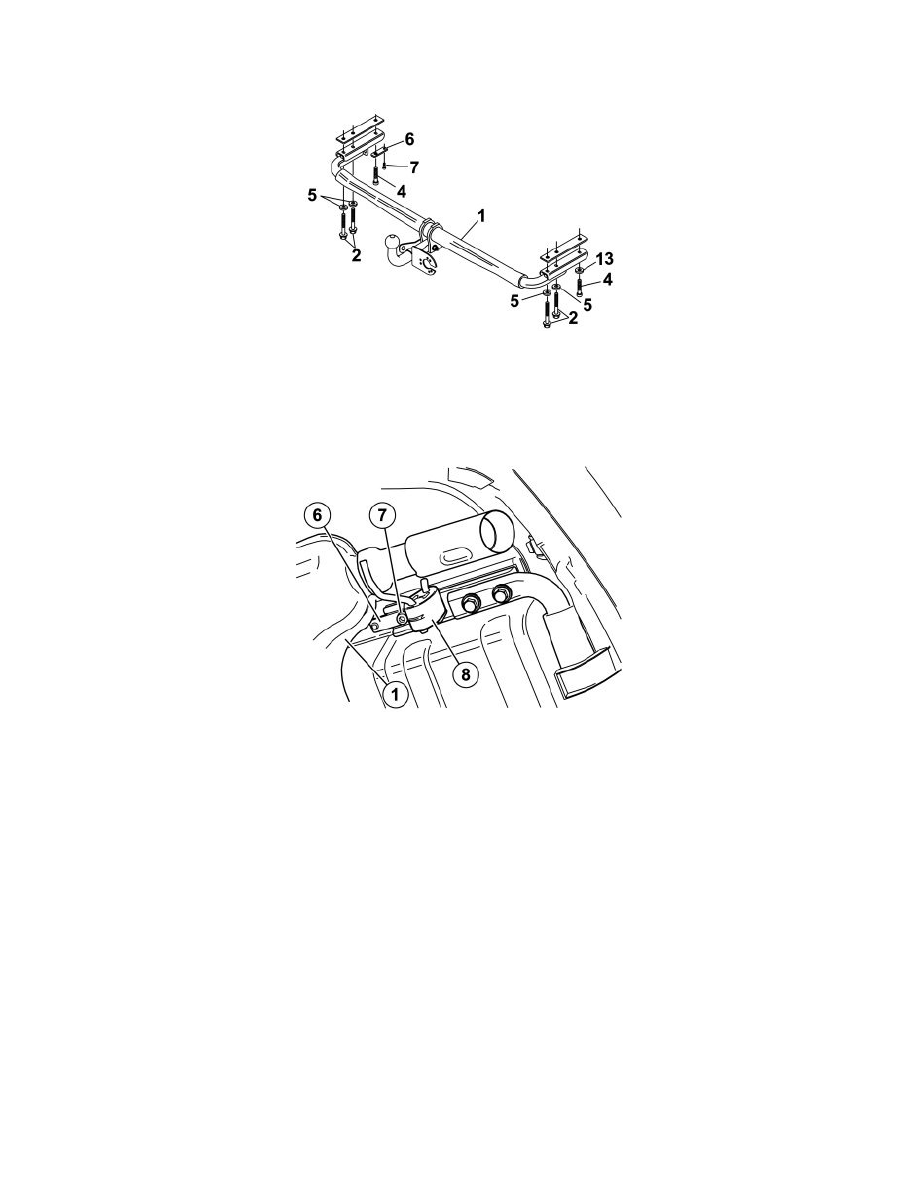

Illustration A
-
Clean any underseal and dirt from the mating surfaces between the tow hitch end face and the bodywork.
-
Install the screws (2 and 4) from the underneath with the washers (5 and 13) between. Finger tighten.
-
Install a washer plate (6) on the left-hand side on the front screw (4). This is to secure the rear mounting for the heat deflector plate using the screw
(7). (See illustration B).
Illustration B
-
Install the heat deflector plate (1). Secure the heat deflector plate using the screw (7) for the washer plate (6).
-
Reinstall the rubber mounting (8) for the silencer.
Hint: Use soap to facilitate installation of the rubber mounting.
Illustration A
-
Tighten the screws (2). Tighten to 114 Nm (84 lbf.ft). Tighten the screws (4). Tighten to 81 Nm (60 lbf.ft), on both sides.
-
Underseal the car.
Applies to Sweden only:
-
Underseal after the state roadworthiness inspection.
