S60 2.5T L5-2.5L Turbo VIN 59 B5254T2 (2006)
-
Install the cable harness for the tow hitch according to step 2 onwards in the Installation Instructions for the appropriate cable harness.

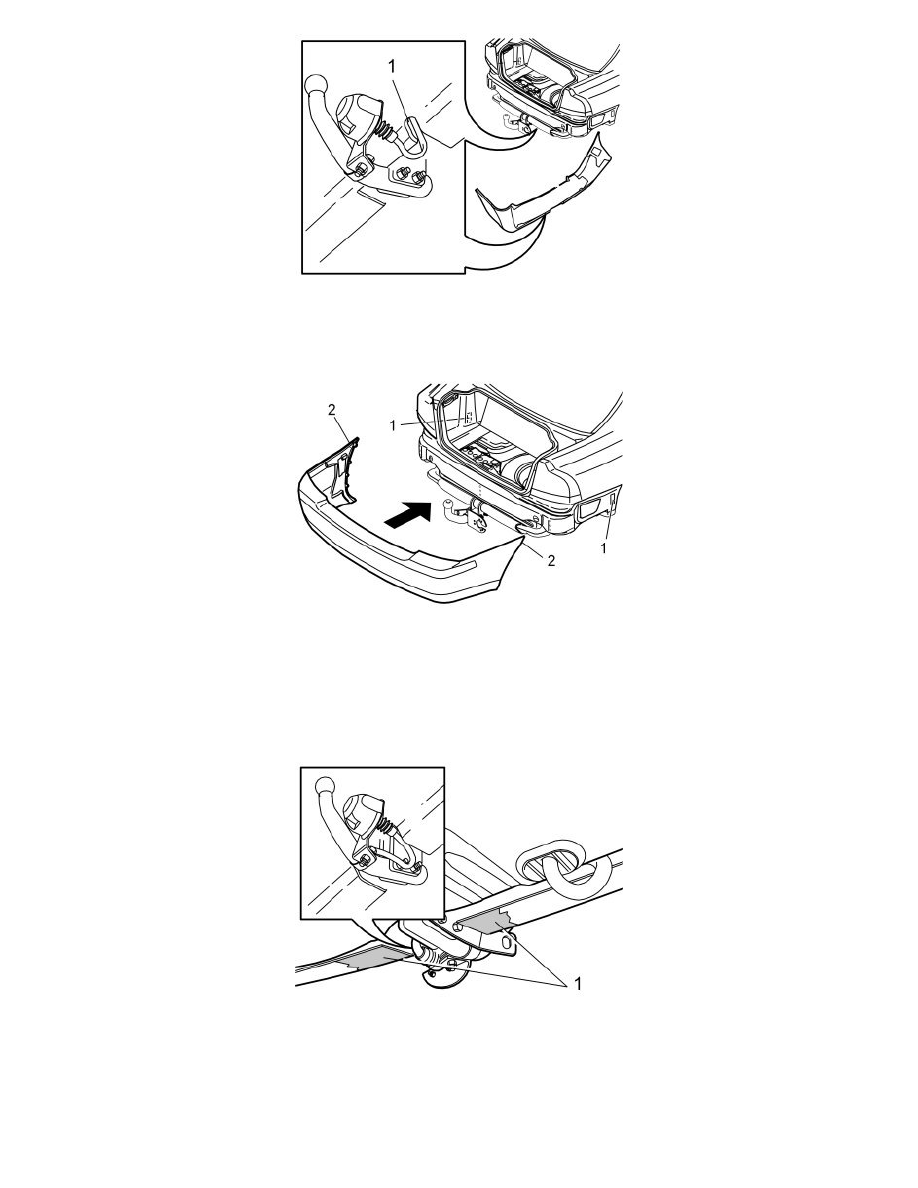

When installing a 7-pin or 13-pin cable harness for the tow hitch, a cut-out (1) must be made in the lower edge of the bumper.
-
Loosely install the bumper. Make markings for the cut-out for the cable harness.
-
Cut out as illustrated so that there is room for the cable harness.
-
If the mountings (1) have released from the rear edge of the wheel arch, reinstall the mountings. Press the mountings completely back into their
grooves and screw in the screw a few turns
-
Applies to cars with parking assistance: Lift up the bumper in position. Pull the cable for the sensors through the hole for the bumper's guide,
and pull the cable in from the inside.
-
Reinstall the bumper by pressing it forwards. Ensure that the four screws protruding from the bumper align with the holes in the car.
-
Before the bumper is completely installed, slide the top edge (2) into the grooves. Then slide the bumper fully in.
-
Twist up the bracket with the trailer connector so that it is aligned straight and slightly away from the bumper.
-
Align the cable harness in the cut-out and secure the bracket.
-
Adjust the cable harness the whole way from the trailer connector and into the rubber grommet so that it does not hang under the car. Press the
excess cable length in through the rubber grommet.
-
Tighten the two tie straps (1) which were positioned earlier.
