S80 2.9 L6-2.9L VIN 94 B6294S (2000)
-
Remove the cable terminal, see Using terminal removal tools See: Diagrams/Diagnostic Aids/Using Terminal Removal Tools
Hint: Use terminal removal tool951 2633 Terminal removal tool See: Tools and Equipment/951 2633 Terminal Removal Tool.
Exposing and replacing the cable terminal, fuse section
-
Remove the fuses from the area to be exposed
-

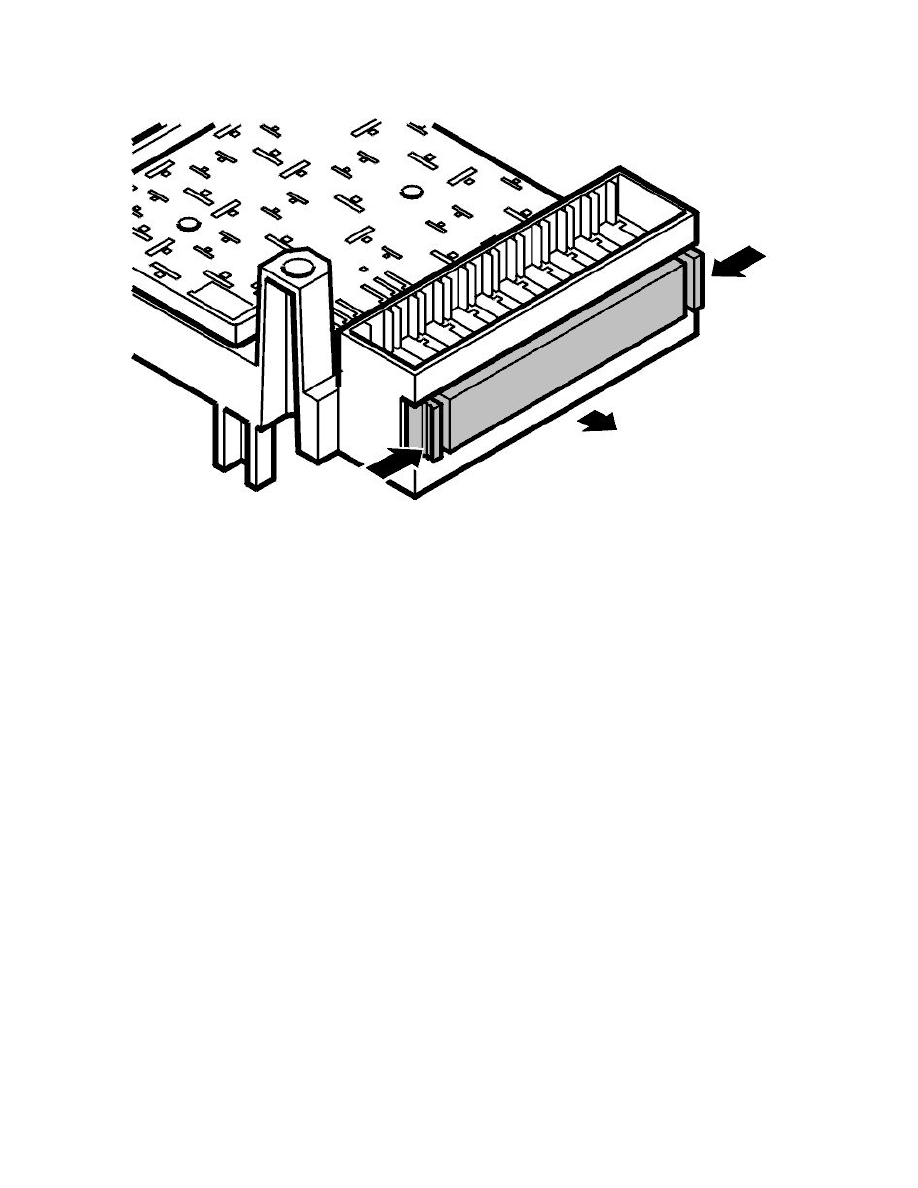

Lift up the insulating plate from the area to be exposed
-
Remove the insulating plate from the central electrical unit by releasing the catches while lifting the insulating plate
Hint: The catches can also be released from the cable side. Use the terminal removal tool.
