S80 2.9 L6-2.9L VIN 94 B6294S (2000)
Separate the connector.
Hint: Use a radio screwdriver.
Press in the locking tab on the cable terminal and carefully pull out the cable and the cable terminal.
Hint: Use tool951 2812 Terminal removal tool See: Tools and Equipment/951 2812 Terminal Removal Tool or951 2637 Terminal removal tool See:
Tools and Equipment/951 2637 Terminal Removal Tool.
Extract the cable terminal, 6 pin switch
Remove the connector from the central electrical unit by releasing the catches at the same time the connector is slid out on the cable side.
Hint: Use a radio screwdriver.
Open the secondary lock.

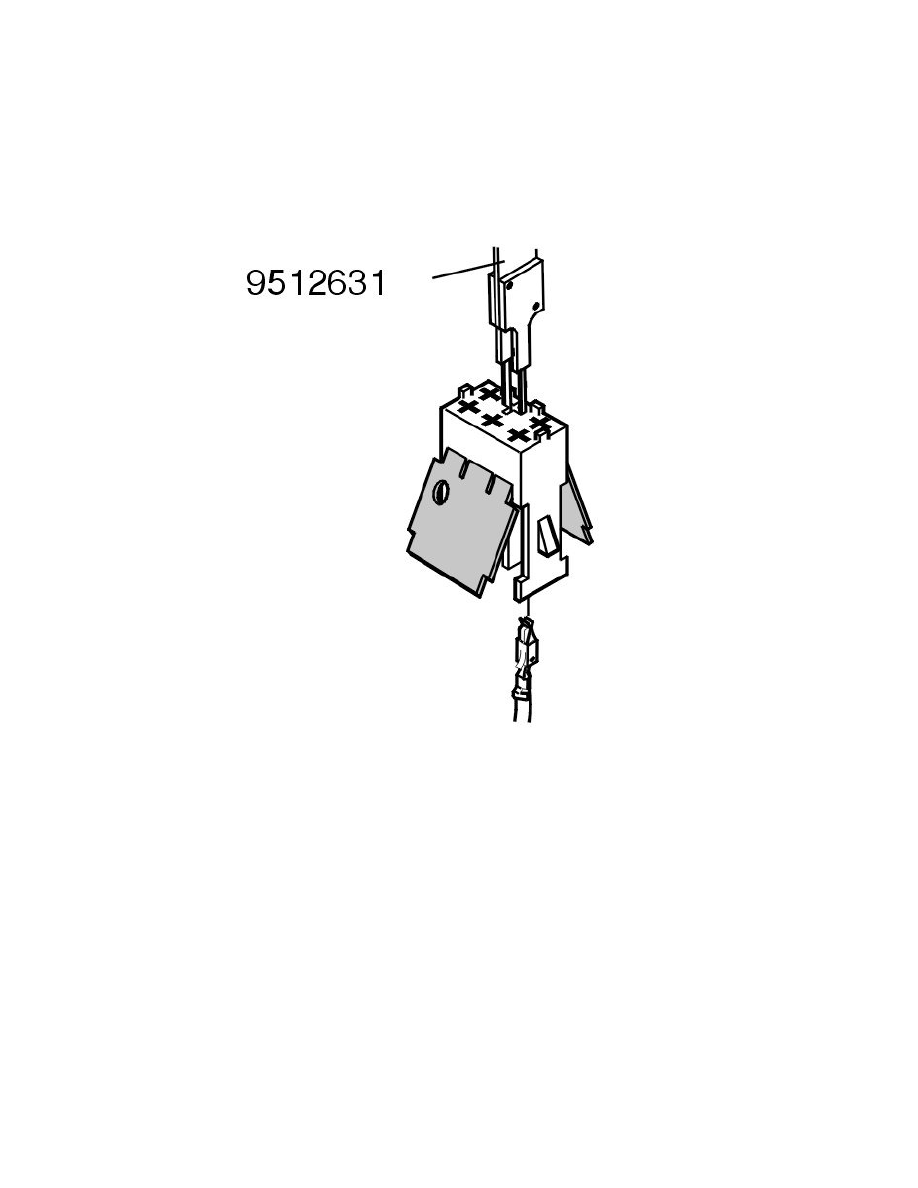

Remove the cable terminal.
Hint: Use tool951 2631 Terminal removal tool See: Tools and Equipment/951 2631 Terminal Removal Tool.
