S80 2.9 L6-2.9L VIN 94 B6294S (2000)
-

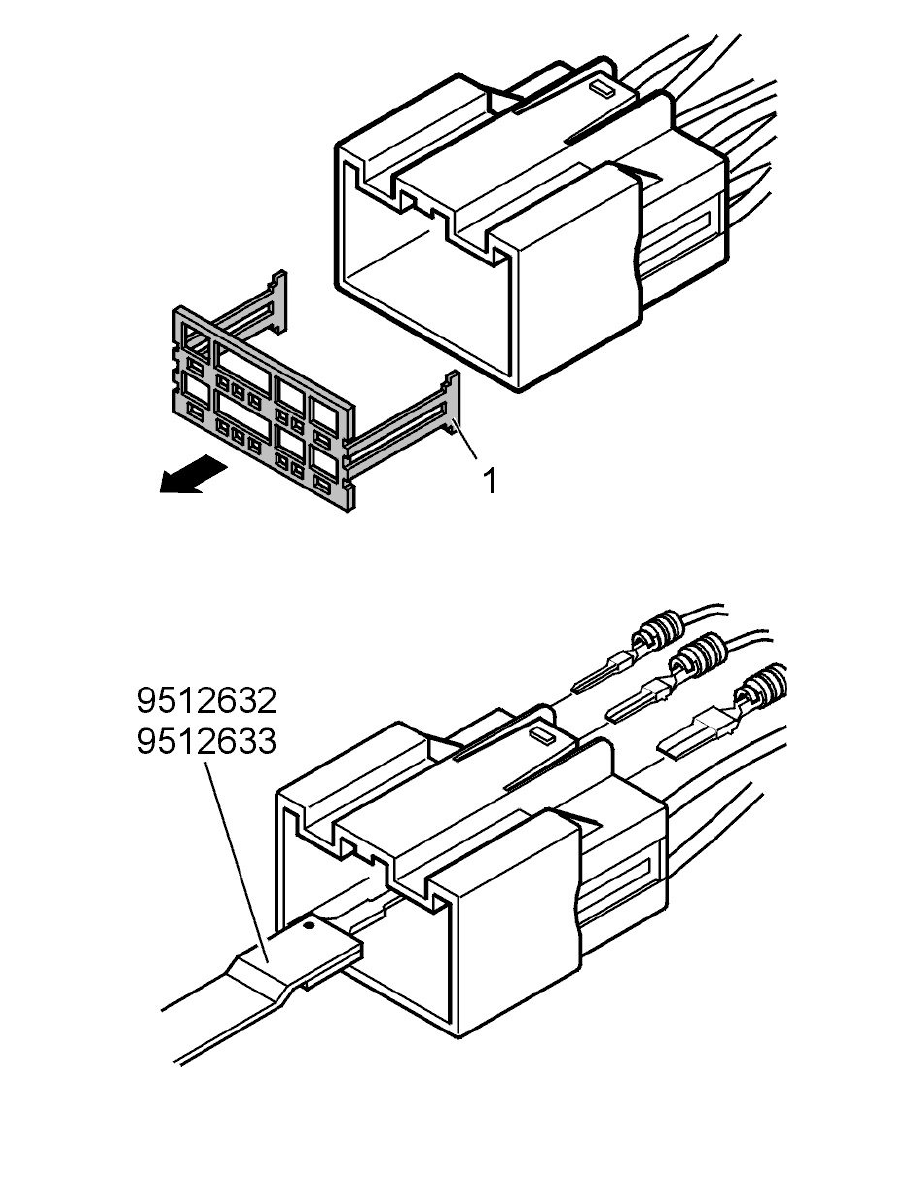

Release the front housing section on the pin housing by pulling the rear catches while at the same time pressing the housing section forwards.
-
Remove the cable terminal, see Using terminal removal tools See: Diagrams/Diagnostic Aids/Using Terminal Removal Tools.
Hint: Use terminal removal tool951 2632 Terminal removal tool See: Tools and Equipment/951 2632 Terminal Removal Tool or951 2633
Terminal removal tool See: Tools and Equipment/951 2633 Terminal Removal Tool.
