S80 2.9 L6-2.9L VIN 94 B6294S (2000)
Extract the cable terminal, socket housing
-

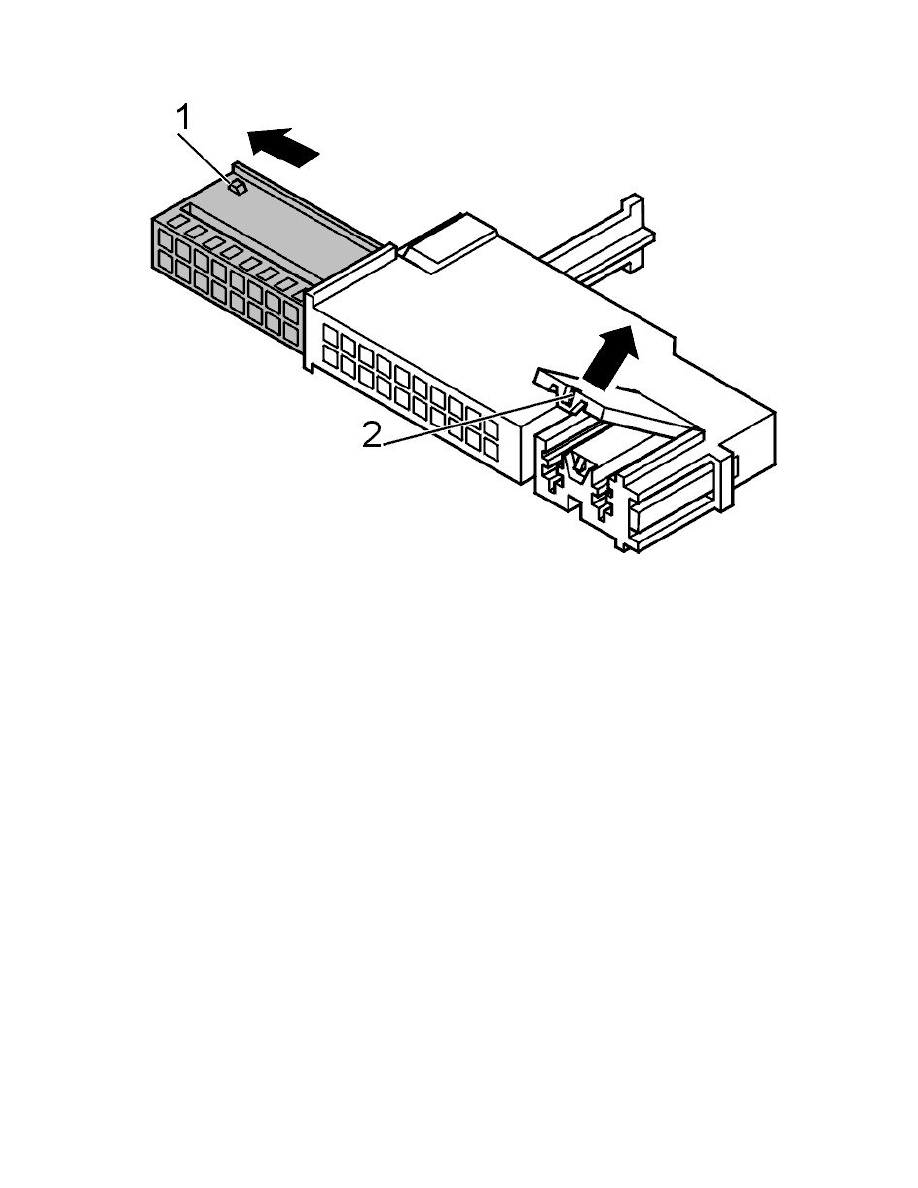

Release the inner housing section on the socket housing by lifting the sleeve beside the catches and pulling the housing section outwards.
Hint: Use terminal removal tool951 2812 Terminal removal tool See: Tools and Equipment/951 2812 Terminal Removal Tool.
-
Lift up the cover.
