S80 2.9 L6-2.9L VIN 94 B6294S (2000)
Hint: Use terminal removal tool951 2639 Terminal removal tool See: Tools and Equipment/951 2639 Terminal Removal Tool.
-
Release the inner housing section on the socket housing by lifting the sleeve beside the catch and pulling the housing section outwards.
Hint: Use terminal removal tool951 2639 Terminal removal tool See: Tools and Equipment/951 2639 Terminal Removal Tool.
-

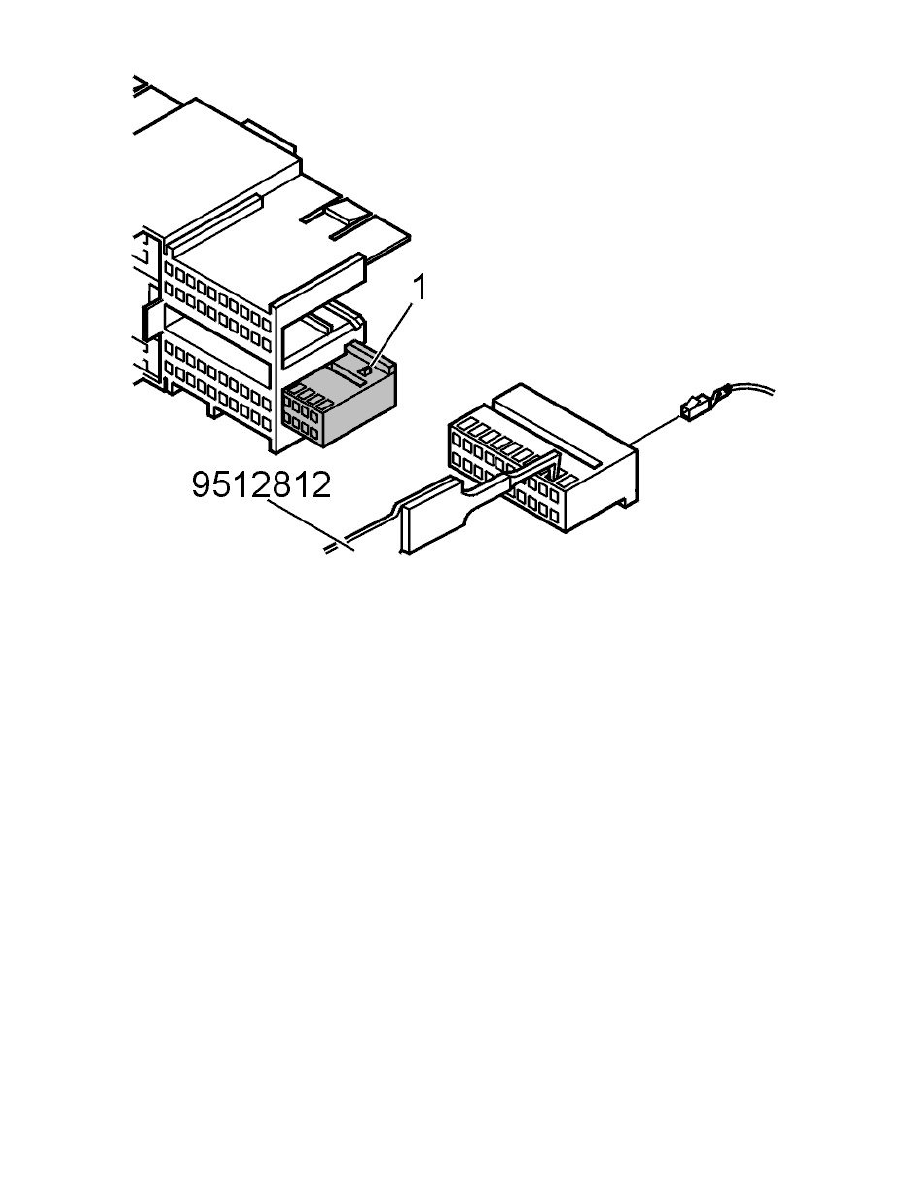

Press in the locking tab on the cable terminal and carefully pull out the cable and the cable terminal.
Hint: Use terminal removal tool951 2812 Terminal removal tool See: Tools and Equipment/951 2812 Terminal Removal Tool.
Crimp new cable terminal
