Transmission identification

Visual Identification

Applies to: 1996–2000; AW50-42

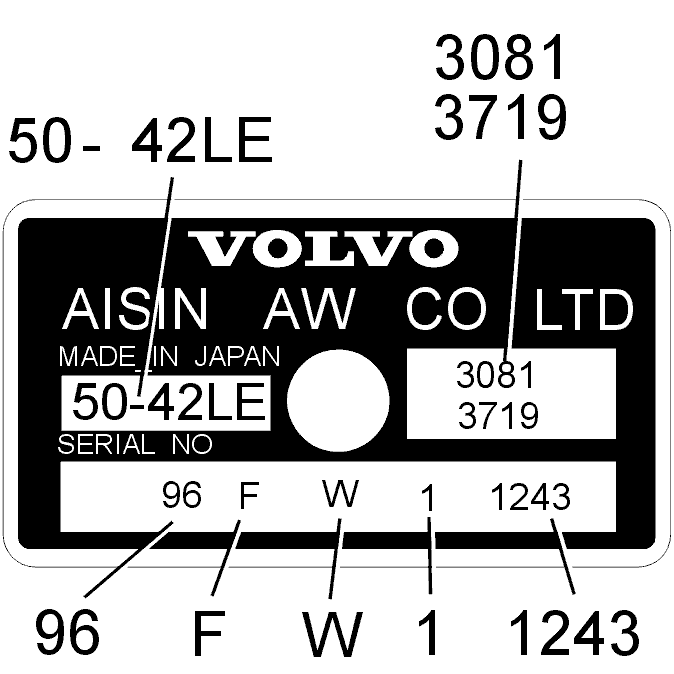

Identification plate

Example:

50-42LE = Transmission designation

30813719 = Volvo P/N

96 = Year of manufacture

F = manufactured in June (A=January and so on. Note! The letter I is not used.)

W = Transmission 50-42LE *

1 = Transmission manufactured for Nedcar

1243 = serial number, starting with 0001 each month.

*) LE indicates that the transmission has a lock- up function and is electronically controlled.

This transmission is an AW50-42LE, manufactured in June 1996. (Used with engines B4184S, B4204S.)
