V50 L5-2.4L VIN 39 B5244S7 (2005)

Relays and Modules > Relays and Modules - Body and Frame > Power Seat Control Module > Component Information > Locations > Page 593

Page 1
background image

Power Seat Control Module: Service and Repair

Control module front seat

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the
essential information in the illustrations is always correct.

Preparatory work

Important information

It is possible to replace only the control buttons if the power seat module (PSM) is not damaged.

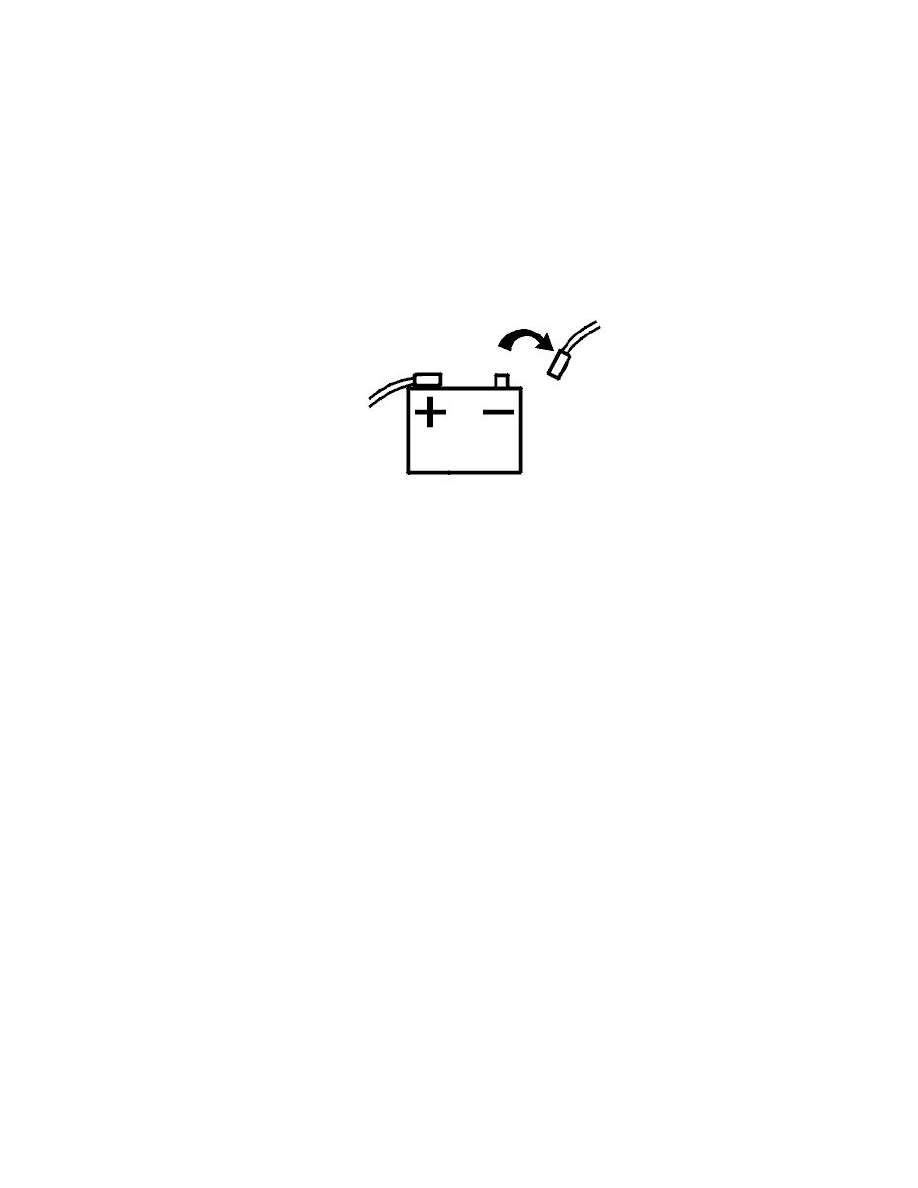

Disconnecting the battery lead

Disconnect the battery negative cable. See: See: Starting and Charging/Battery/Service and Repair/Procedures/Battery, Disconnecting

Remove the key.

Note! The key must be removed to ensure that the ignition is not switched on by mistake.

Wait 1 minute before starting work.

Removal

Removing the power seat module (PSM)
