volvo Workshop Repair Guides


V50 L5-2.4L VIN 39 B5244S7 (2005)

Relays and Modules > Relays and Modules - Body and Frame > Power Seat Control Module > Component Information > Locations > Page 594

Page 2
background image

Remove:

-

the side panel as described in  Side panel front seat See: Body and Frame/Seats/Service and Repair/Removal and Replacement/Front Seat/Side
Panel Front Seat

-

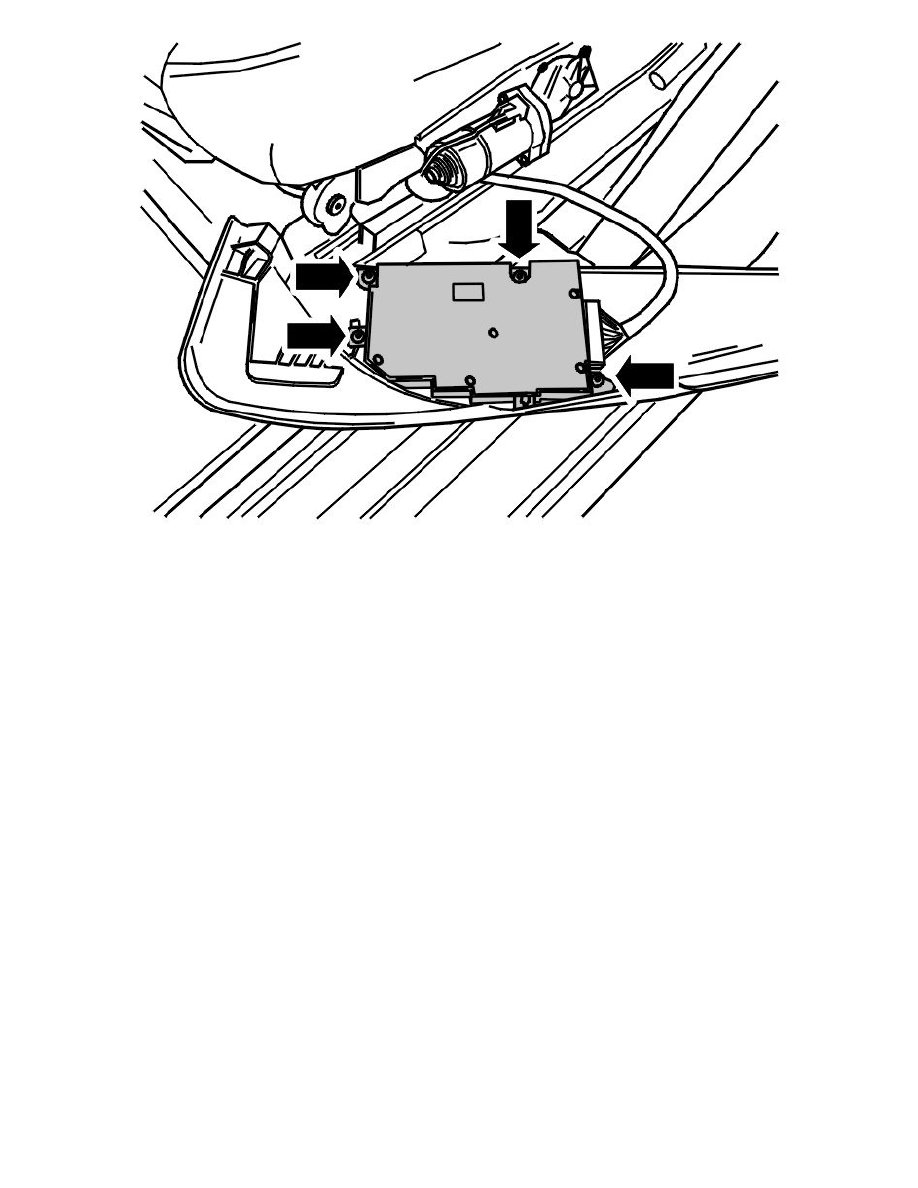

the 4 screws

-

power seat module (PSM) from the side panel

-

the 1 or 2 connectors.

Transferring components

Replacing control buttons for the power seat module (PSM)

Relays and Modules > Relays and Modules - Body and Frame > Power Seat Control Module > Component Information > Locations > Page 594
