Page 4
background image

-

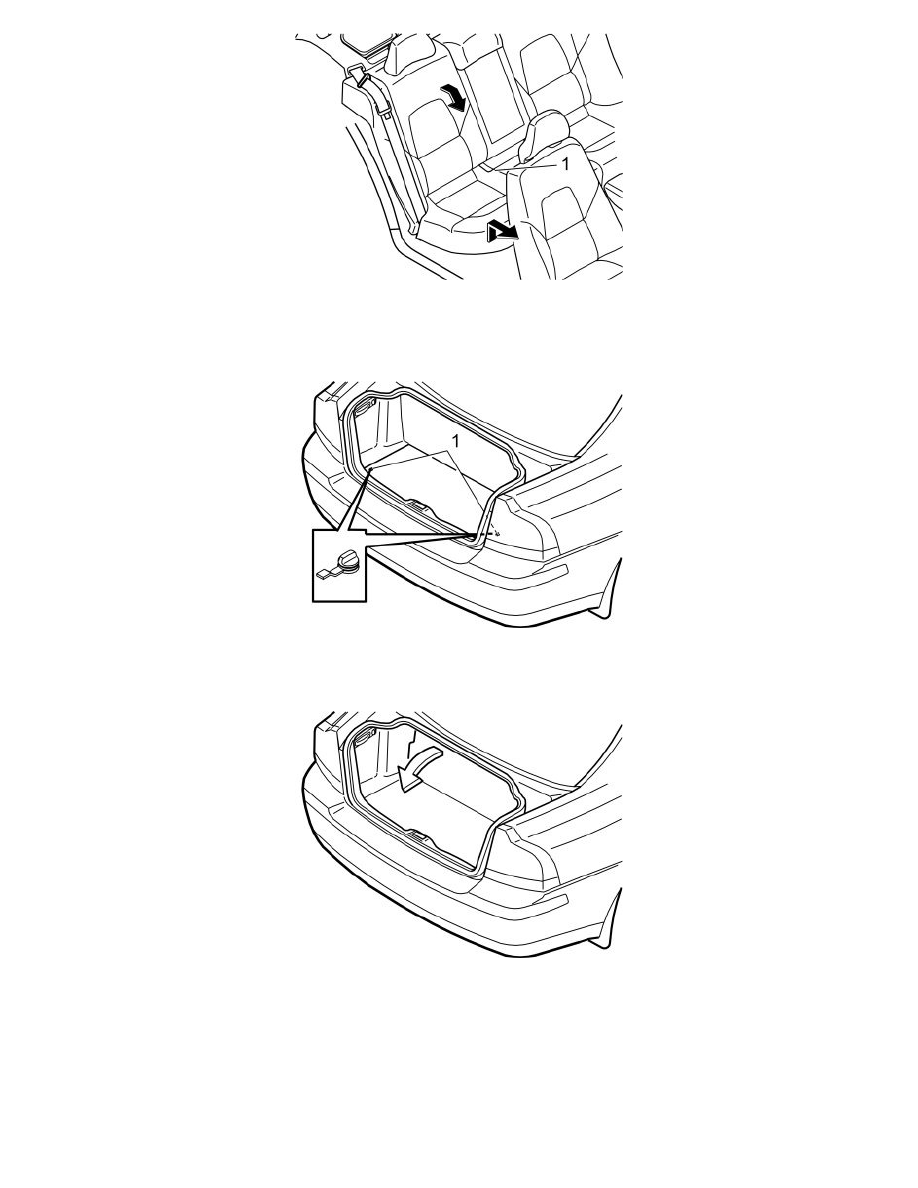

Remove the seat cushion (1). First pull the front edge of the seat cushion up. Pull the cushion forwards. Then lift the seat cushion out

-

Fold the right-hand rear backrest forward.

Preparations in the cargo compartment

Note! Right-hand drive cars: Proceed directly to point.

-

Remove the cargo compartment carpet at the rear edge. First turn the two knobs (1) 90°.

-

Pull up the front of the cargo compartment carpet. Fold the front half back over the rear half of the cargo compartment carpet

-

Slide the entire cargo compartment carpet forwards slightly and then turn it

-

Lift the carpet out of the car.

Sensors and Switches > Sensors and Switches - Accessories and Optional Equipment > Parking Assist Distance Sensor > Component Information > Service and Repair > Back-Up Warning Sensor, Replacing > Page 1327
