XC90 AWD L6-2.9L Turbo VIN 91 B6294T (2004)
Check that the control module's connectors are intact.
Installing the control module
Press the control module into place so that the catch on the rear engages
Position the connector. Carefully press the connector down.
Note! The pins are fragile. Check that the connector goes straight down into the control module.
Tighten the screw for the connector
Check that the connector cover is correctly positioned. Remedy if necessary
Install the relays and shunts. Note their locations
Install the integrated relay/fusebox. See Installing the integrated relay/fusebox in the cargo compartment.
Order applicable software. See: Testing and Inspection/Programming and Relearning
Upper Electronic Module (UEM)/Rearview Mirror, Replacing
Upper electronic module (UEM)/rearview mirror, replacing
Note! As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the
essential information in the illustrations is always correct.
Note! A rear view mirror with manual function cannot be replaced with automatic anti-dazzle or vice versa. The system will store diagnostic
trouble codes (DTCs). The upper electronic module (UEM) is integrated in the rear view mirror.
Note! Read off data from the control module before replacing the control module. Program this data back into the new control module.
Programmed data is read off via VIDA vehicle communication.
Caution! New software can only be ordered when the control module is installed in the car. VIDA reads off the new control module identity
which is required to order the correct software.
Note! Always check that the control module and control module box connectors do not have bent or damaged terminals or socket/sleeves. This
may have been the cause of a fault.
Remove the interior lighting. See Interior lighting, replacing See: Lighting and Horns/Dome Lamp/Service and Repair/Interior Lighting, Replacing.

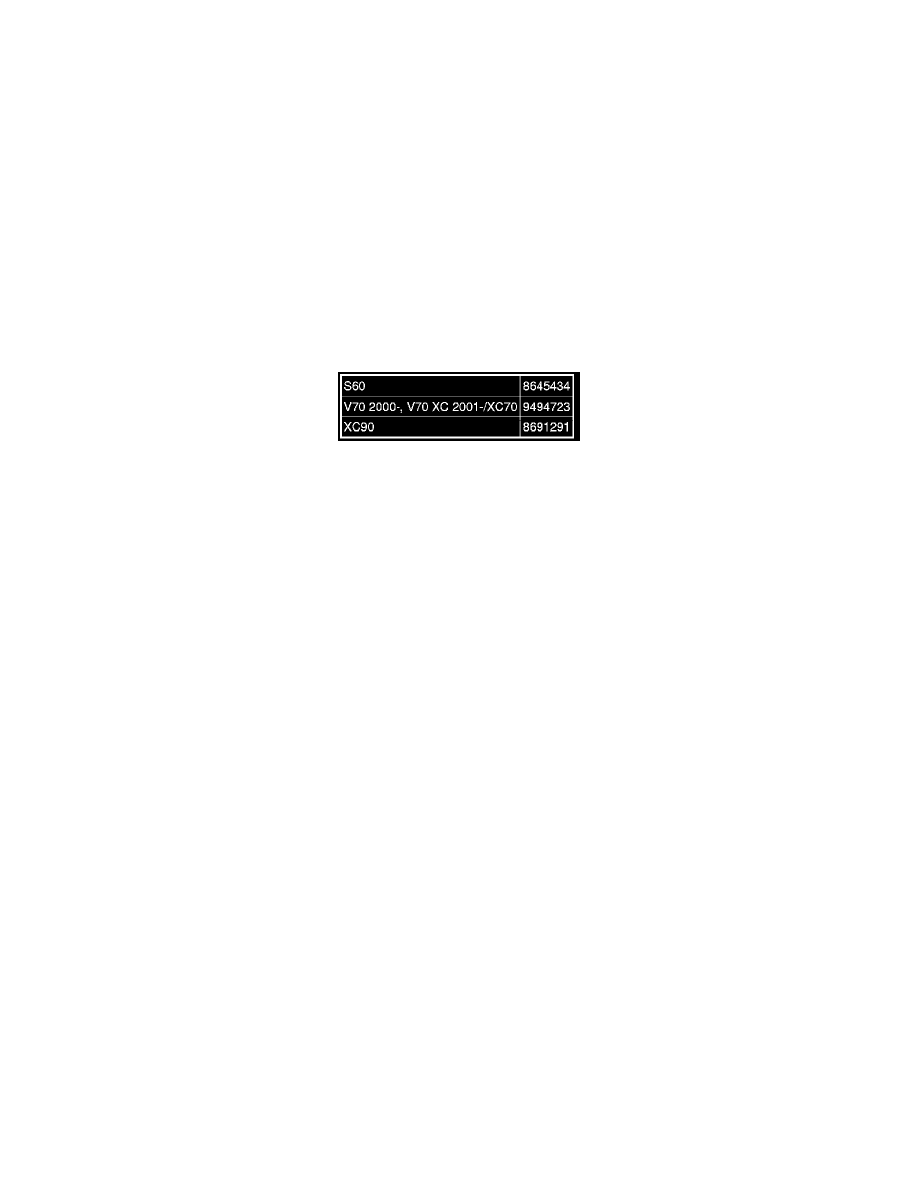

Removing the rear view mirror/control module
