XC90 AWD L6-2.9L Turbo VIN 91 B6294T (2004)

Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Body Control Module > Component Information > Service and Repair > Central Electrical Unit Engine Compartment > Page 813

Page 28
background image

-

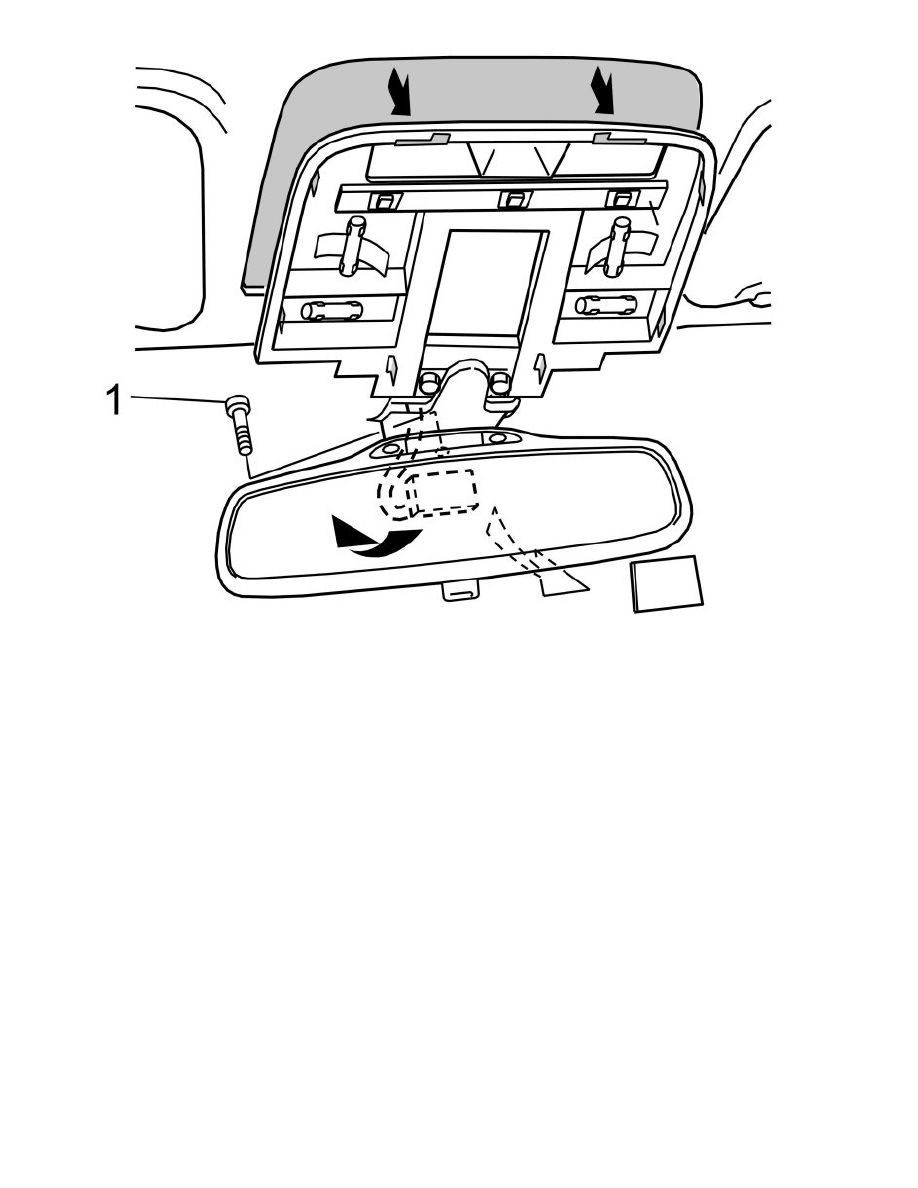

Remove the cover over the connector for the rear view mirror and control module

-

Remove the cable spring using a screwdriver

-

For rear view mirrors with manual anti-dazzle: Flip the anti-dazzle button toward the lens.

Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Body Control Module > Component Information > Service and Repair > Central Electrical Unit Engine Compartment > Page 813
