volvo Workshop Repair Guides


XC90 AWD L6-2.9L Turbo VIN 91 B6294T (2004)

Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Body Control Module > Component Information > Service and Repair > Central Electrical Unit Engine Compartment > Page 814

Page 29
background image

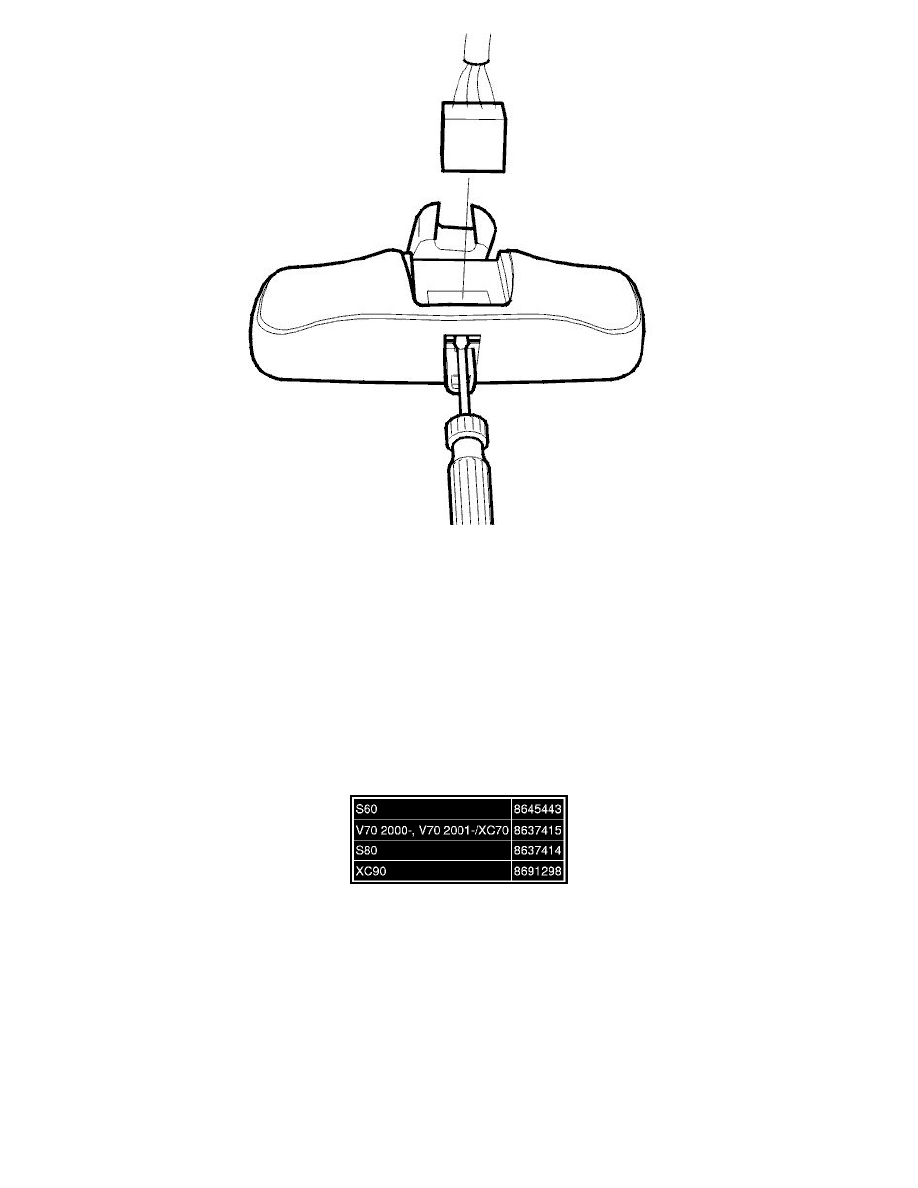

Disconnect the connector by pressing the catch using a small screwdriver.

Installation

Installing the rear view mirror and control module

Connect the connector.

-

The cable spring

-

The connector cover

-

The interior lighting. See Interior lighting, replacing See: Lighting and Horns/Dome Lamp/Service and Repair/Interior Lighting, Replacing.

Ordering software

Order applicable software.  See: Testing and Inspection/Programming and Relearning

Accessory Electronic Module (AEM), Replacing

Accessory electronic module (AEM), replacing

Removal

Note! As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the
essential information in the illustrations is always correct.

Preparatory work

Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Body Control Module > Component Information > Service and Repair > Central Electrical Unit Engine Compartment > Page 814
