Fuel Pressure Release: Service and Repair
Fuel Tank Draining

Fuel tank, draining

Special tools:

999 5720 Wrench See: Tools and Equipment/999 5720 Wrench
999 5721 Adapter See: Tools and Equipment/999 5721 Adapter
999 7314 Spanner See: Tools and Equipment/999 7314 Spanner

Note! As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the
essential information in the illustrations is always correct.

Preparation

Disconnect the battery negative terminal. See Battery, disconnecting See: Starting and Charging/Battery/Service and Repair/Procedures/Battery,
Disconnecting.

Warning! RISK OF EXPLOSION!!! THE USE OF A FRESH AIR MASK IS RECOMMENDED.

Note! Before draining the fuel, see: Safety regulations for handling fuel See: Powertrain Management/Fuel Delivery and Air Induction/Service
Precautions/Safety Regulations for Handling Fuel.

Drain the fuel lines. See: Fuel system, draining See: Powertrain Management/Fuel Delivery and Air Induction/Service and Repair/Fuel System, Draining
Insert the heavy duty hose 1.3 meters into the fuel filler pipe, measured from the edge of the opening of the filler pipe.
Pump until air comes out.
Remove the outer rear seats. See Upholstery backrest cushion outer (second row) See: Body and Frame/Seats/Seat Cover/Service and Repair/Rear Seat,
Passenger Seat, Seat/Upholstery Backrest Cushion Outer (Second Row). Remove the center rear seat. See Upholstery backrest cushion center (second
row), replacing See: Body and Frame/Seats/Seat Cover/Service and Repair/Rear Seat, Passenger Seat, Seat/Upholstery Backrest Cushion Center (Second
Row), Replacing.

Fold the carpet back.

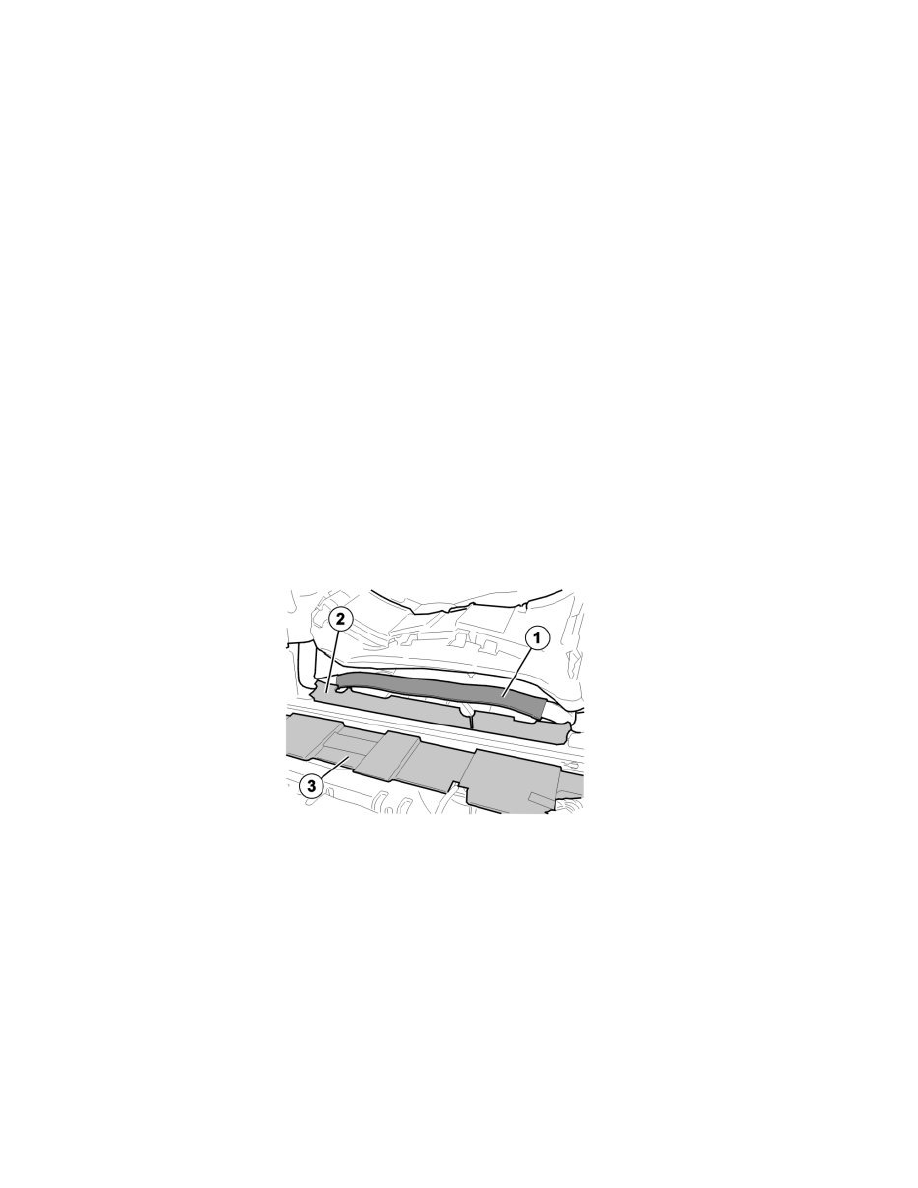

Remove:

-

ventilation pipe (1), only applies to 7-seater vehicles

-

the insulation block (2)

-

the insulation block (3).

Removing the cap over the level sensor
