XC90 FWD L6-3.2L VIN 98 B6324S (2007)
Install the drive shaft in the transmission
Right-hand side
Preparations
See, Drive shaft right, replacing See: Axle Shaft Assembly/Service and Repair/Drive Shaft Right, Replacing. For cars with viscous couplings, see See:
Seal CV Joint Housing, Replacing
Remove the drive shaft seal

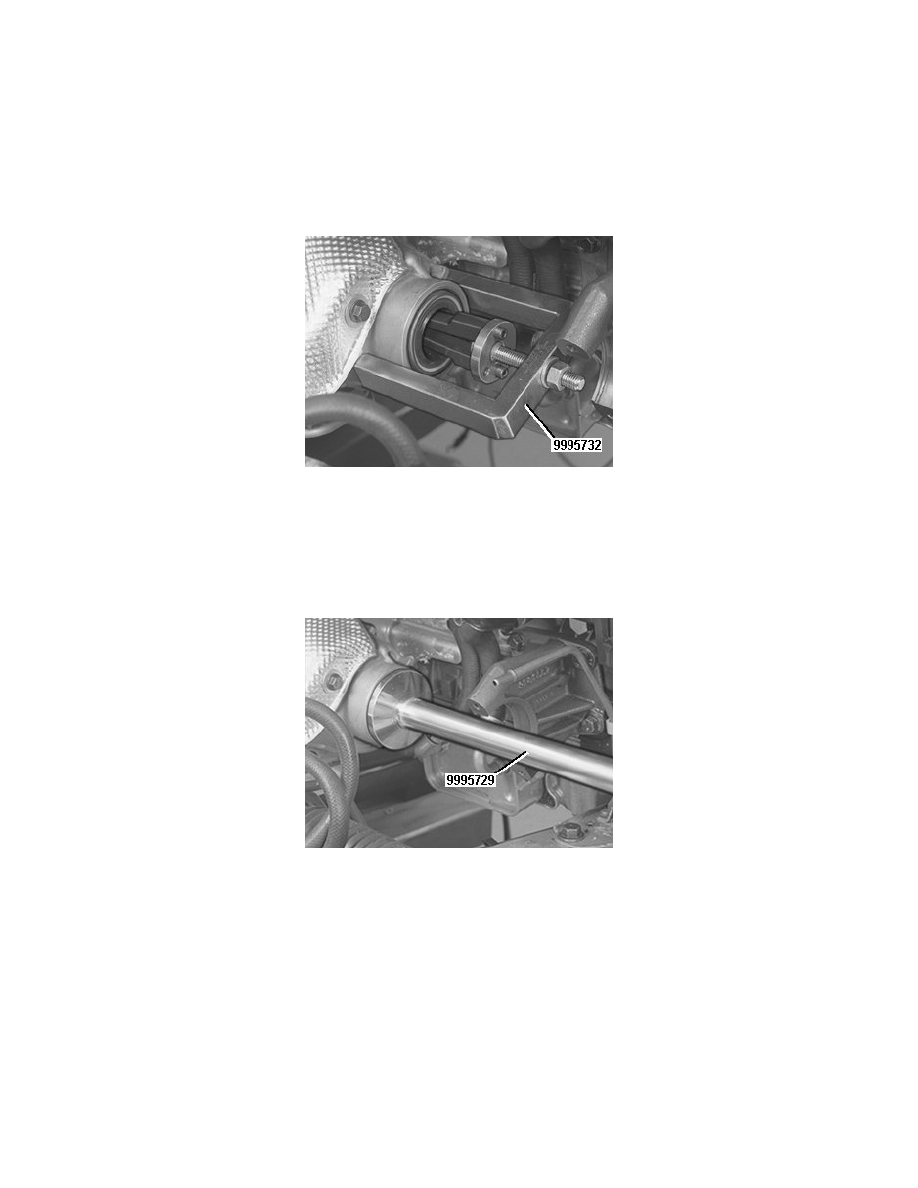

Use puller 999 5732 Puller See: Tools and Equipment/999 5732 Puller.
Unscrew the puller. Install a hook gradually between the shaft and sealing ring.
Secure the hooks to the puller. Tighten them using the screws.
Install the mounting bracket and the nut.
Extract the sealing ring.
Install the drive shaft seal
Note! Clean thoroughly before installing the new seal
Apply a small amount of grease to the sealing lip.
Use drift 999 5729 Drift See: Tools and Equipment/999 5729 Drift.
Carefully tap the drive shaft seal in until the drift is in contact with the transmission housing.
Install the drive shaft in the transmission
See (cars with viscous couplings), Drive shaft right, replacing See: Axle Shaft Assembly/Service and Repair/Drive Shaft Right, Replacing and .
