X Series E83 X3 3.0i (M54) OFFRD
Note:
Pressure line of clutch slave cylinder remains connected.
Important!
Relieve tension on clutch slave cylinder slowly; otherwise air
will be drawn in through sealing sleeve.

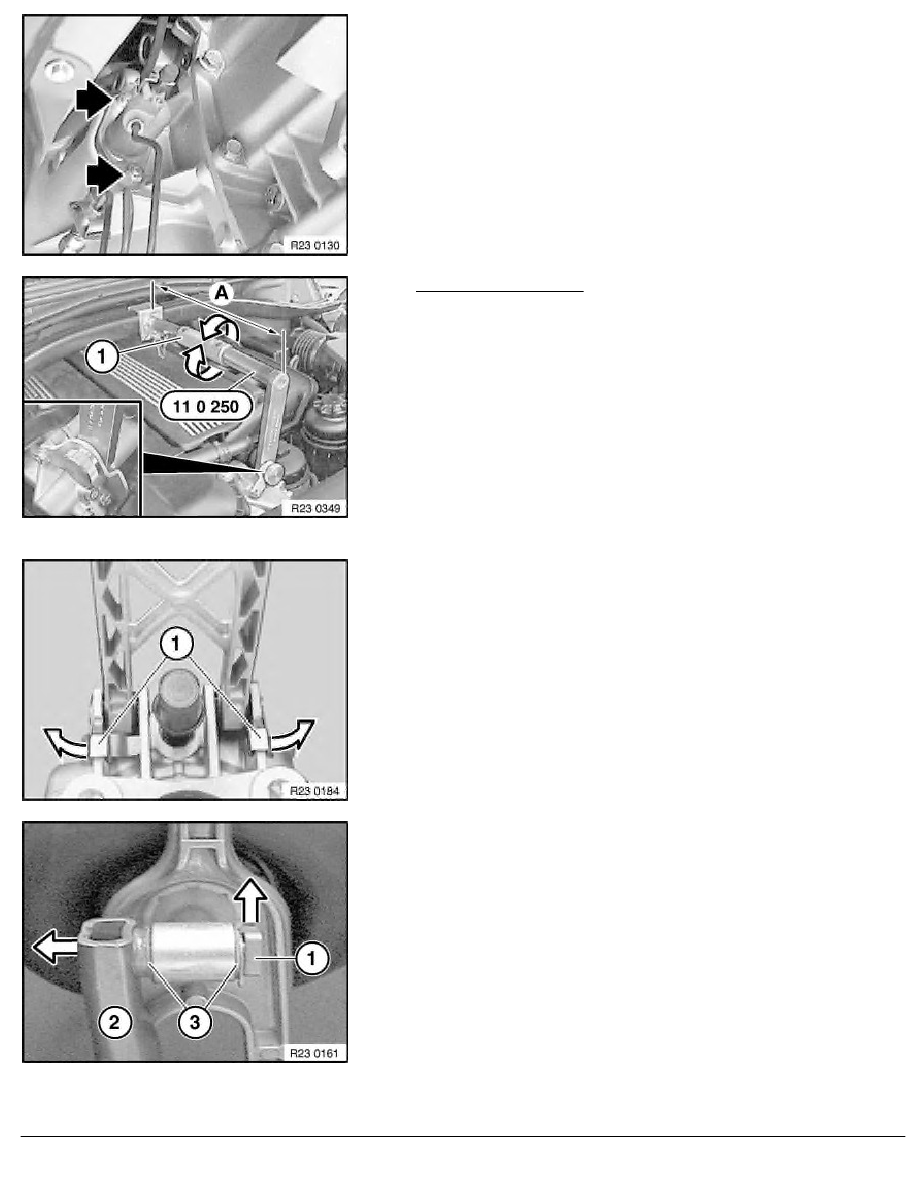

Release nuts and remove clutch slave cylinder.
Tightening torque 21 52 5AZ
.
Lowering transmission:
-
Turn special tool 11 0 250 back with adjusting screw (1) to
measurement "A".
Transmission in removal position.
Transmission removal position, measurement "A" = approx.
34 cm.
Important!
Risk of damage:
When lowering the transmission, make sure the engine does
not rest against the bulkhead.
Unlock bearing pin (1) in direction of arrow and remove.
Lift out shift arm.
Installation:
Grease bearing pins (1).
Grease, refer to BMW Service Operating Fluids.
Note:
Illustrations show E60.
Lift off retainer (1).
Disconnect shift rod (2).
Installation:
Grease shift rod.
Grease, refer to BMW Service Operating Fluids.
Make sure shims (3) are in correct position.
RA Removing and installing transmission (GS6-37BZ)
