Freelander Service Procedures
AUTOMATIC GEARBOX - JATCO
44-18
REPAIRS

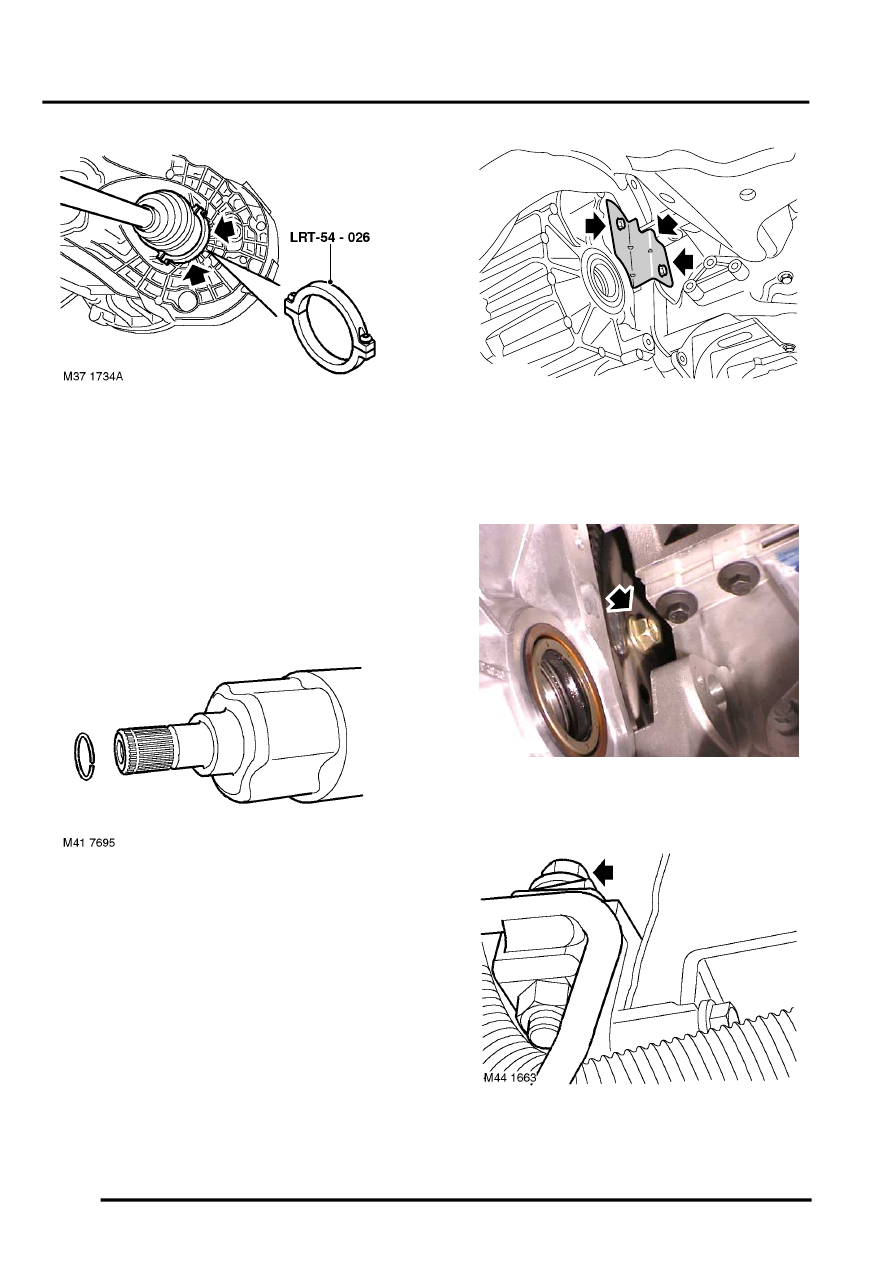

8. Secure LRT-54-026 to drive shaft inboard joint.
Using a suitable lever, release inboard joint
from gearbox.
9. With assistance pull hub outwards and release
drive shaft from gearbox.
CAUTION: Care must be taken not to
damage oil seal when removing drive shaft
from gearbox
10. Remove and discard circlip from drive shaft.
11. Remove 2 bolts securing torque converter
access plate.
12. Remove access plate.
13. Mark drive plate to torque converter, for refit
purposes.
14. Remove 4 bolts securing drive plate to
converter.
15. Remove bolt securing IRD cooling hose
retainer. Remove retainer.
M44 1661
M44 1649
