STEERING
REPAIRS
57-13
2. Fit locking rings to track rods, ensure taper
faces track rod end.
3. Clean ball joint tapers and taper seats.
4. Fit track rod end ball joints to track rods the
same number of threads noted on removal.
5. Fit PAS rack, tighten new bolts and nuts to 100
Nm (74 lbf.ft), then tighten a further 90
°
.
6. Connect RH track rod end ball joint to RH
steering arm.
7. Fit new track rod end ball joint securing nut and
tighten to 80 Nm (59 lbf.ft)..
8. Clean PAS hoses and PAS rack mating faces.
9. Using new sealing washers, fit PAS hoses and
tighten M16 banjo bolt to 40 Nm (30 lbf.ft) and
M14 banjo bolt to 36 Nm (26 lbf.ft).
10. Align PAS feed hose to PAS rack and tighten
securing bolt.

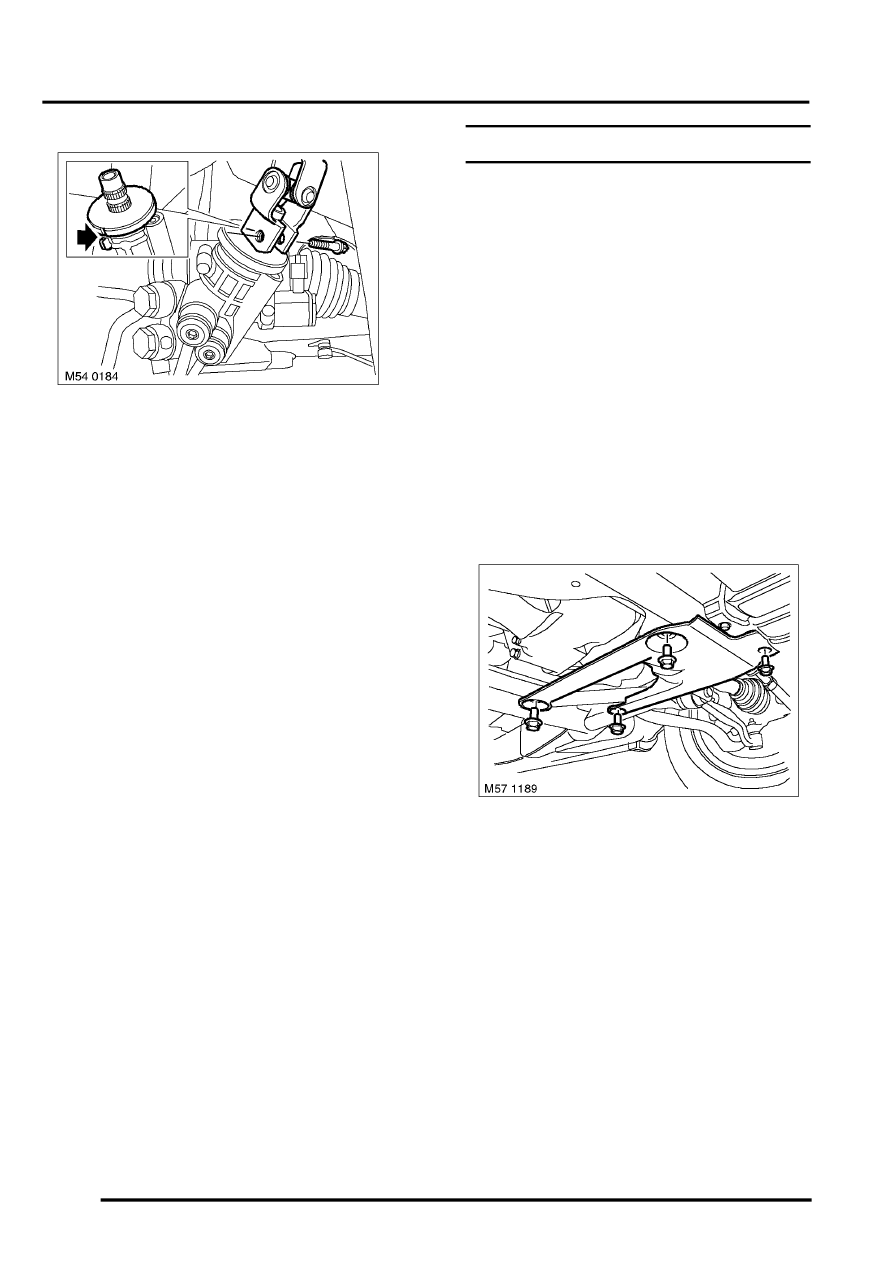

11. Connect lower steering column to PAS rack
making sure that alignment tag is aligned.
12. Fit new PAS rack lower steering column Torx
clamping bolt and tighten to 24 Nm (18 lbf.ft).
13. Connect multiplug to PAS rack pinion sensor.
14. Fit LH front drive shaft.
15. Fit LH front height sensor.
16. Remove container from below PAS rack.
17. Fit air flow panel and tighten bolts to 45 Nm (33
lbf.ft).
18. Fit undertray.
19. Fit front road wheels and tighten nuts to 140
Nm (103 lbf.ft).
20. Remove stands and lower front end of vehicle.
21. Connect battery earth lead.
22. Bleed PAS system.
assisted steering (PAS) system - bleed.
23. Check and adjust front wheel alignment.
wheel alignment - check & adjust.
24. Top-up differential with oil.
